JGX Series
PCB Mount Solid State Relay

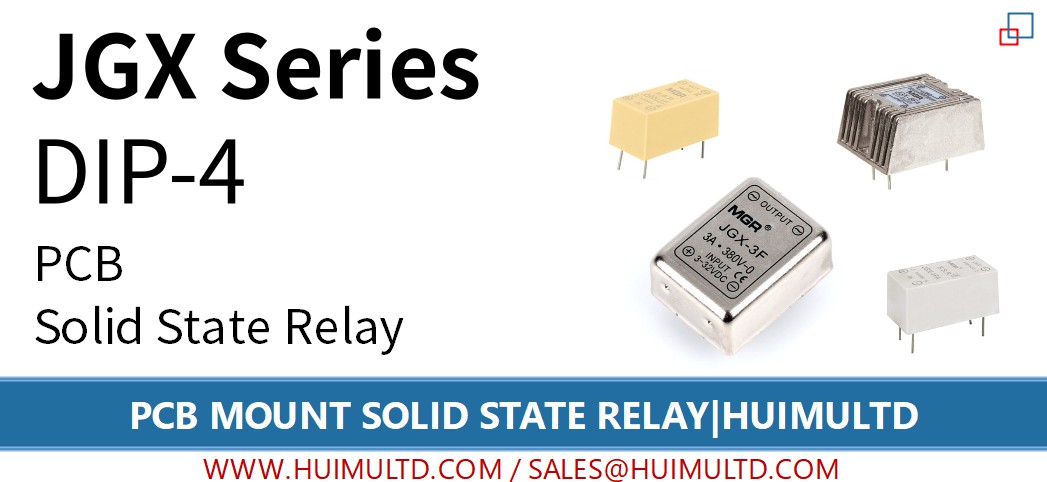

JGX Series PCB Mount Solid State Relay

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction

JGX series PCB Mount Solid State Relay uses the standard DIP-4 (Double In-line Package 4 pins) configuration, and can be divided into JGX_F series DC to AC PCB mount solid state relay, JGX_FA series DC to DC PCB mount solid state relay. The JGX series is available in three housings: Plastic Housing (1A, 3A, 5A), Metal Housing (3A, 5A), Cast Aluminum-zinc Alloy Housing (5A, 8A). The cast aluminum-zinc alloy housing type is also known as the Heat Sink type (or Integrated Heat Sink type), it has significant heat dissipation ability and can be applied to devices that require a large output power, and an S is added at the end of the model number, such as JGX_FS series, JGX_FAS series.

How to order

How to Order JGX Series PCB Mount Solid State Relay

JGX (PCB Mount, DIP-4)
  - [Rated Current]
  - [Input-Output] {F (DC-AC); FA (DC-DC); FS (DC-AC, Heat Sink); FAS (DC-DC, Heat Sink)}

Parameters

JGX_F Series (Plastic Housing) PCB Mount Solid State Relay

JGX_F Series (Plastic Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 32mm*15mm*16mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and DIP 4-pin package

JGX_F Series (Metal Housing) PCB Mount Solid State Relay

JGX_F Series (Metal Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 3A, 5A
Dimensions & Mounting: 32mm*25mm*14mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions, and DIP 4-pin package

JGX_FS Series (Cast Aluminum-zinc Alloy Housing) PCB Mount Solid State Relay

JGX_FS Series (Cast Aluminum-zinc Alloy Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 5A, 8A
Dimensions & Mounting: 43mm*30mm*20mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions with heat sink, and DIP 4-pin package

JGX_FA Series (Plastic Housing) PCB Mount Solid State Relay

JGX_FA Series (Plastic Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 33mm*15mm*16mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and DIP 4-pin package

JGX_FA Series (Metal Housing) PCB Mount Solid State Relay

JGX_FA Series (Metal Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 3A, 5A
Dimensions & Mounting: 33mm*25mm*14mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions, and DIP 4-pin package

JGX_FAS Series (Cast Aluminum-zinc Alloy Housing) PCB Mount Solid State Relay

JGX_FAS Series (Cast Aluminum-zinc Alloy Housing)

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 5A, 8A
Dimensions & Mounting: 43mm*30mm*20mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions with integrated heat sink, and DIP 4-pin package

Features

JGX_F Series

● DIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● British standard PCB mounting dimensions

JGX_FA Series

● DIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Low-impedance MOSFET as the output component minimize the total power consumption
● British standard PCB mounting dimensions

Dimensions and Circuit Wiring Diagram

JGX_F Series PCB Mount Solid State Relay

JGX_F Series Plastic Housing PCB Mount Solid State Relay Circuit Wring Diagram

Plastic Housing

JGX_F Series Metal Housing PCB Mount Solid State Relay Circuit Wring Diagram

Metal Housing

JGX_F Series Cast Aluminum-zinc Alloy Housing PCB Mount Solid State Relay Circuit Wring Diagram

Cast Aluminum-zinc Alloy Housing

JGX_FA Series PCB Mount Solid State Relay

JGX_FA Series Plastic Housing PCB Mount Solid State Relay Circuit Wring Diagram

Plastic Housing

JGX_FA Series Metal Housing PCB Mount Solid State Relay Circuit Wring Diagram

Metal Housing

JGX_FA Series Cast Aluminum-zinc Alloy Housing PCB Mount Solid State Relay Circuit Wring Diagram

Cast Aluminum-zinc Alloy Housing

Application

● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to air conditioners, balers, household appliances, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.
● High power density, low mounting density (limited installation space), no additional heat sink required.

Precautions and FAQs

● What are the differences between Panel mount SSR and PCB mount SSR? The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.

All Regular Models We Offer

● JGX_F Series (DIP-4, DC to AC)

Plastic Housing

Metal Housing

  • JGX-3F
  • JGX-5F

Cast Aluminum-zinc Alloy Housing

● JGX_FA Series (DIP-4, DC to DC)

Plastic Housing

Metal Housing

  • JGX-3AF
  • JGX-5AF

Cast Aluminum-zinc Alloy Housing

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Blog - Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
