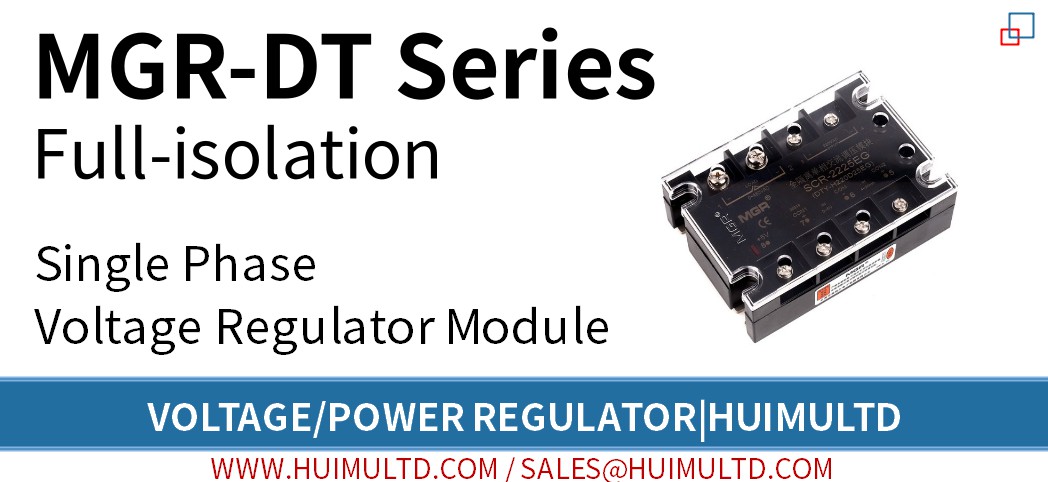

MGR-DT Series
Voltage Power Regulator
[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]
Introduction
MGR-DT Series Full Isolation Single Phase AC Solid State Voltage Regulator Module (used to know as "DTY Series", " DTY-H Series " or " SCR Series ") integrates the synchronous transformer, the phase detection circuit, the phase-shift trigger circuit and the thyristor output circuit. MGR-DT Series can control the trigger angle (Conduction Angle) of the thyristor (Phase Angle Control) to regulate the load voltage. According to the different types of the output power thyristor, MGR-DT Series can be divided into Ordinary Type (one TRIAC as the output component), Enhanced Type (a pair of reverse-parallel SCR as the output component) and Half-wave Type (one SCR as the output component). According to the rated voltage of single phase AC load, MGR-DT Series can be divided into 220V type and 380V type. According to different control signals (CON), MGR-DT Series can be divided into E type, F type, G type, and H type.
How to order
MGR-DT (Full Isolation Single Phase Voltage Regulator Module)
- [Load Voltage] {22 (220VAC); 38 (380VAC)}
- [Rated Current]
- [Option] {Blank (Full Wave); X (Half Wave)}
- [Control Signal] {E (0~5VDC); F (0~10VDC); G (4~20mA); H (1~5VDC)}Parameters
MGR-DT Series
Control Signal: E: CON 0~5V; F: CON 0~10V; G: CON 4~20mA; H: CON 1~5V
*(E, F, H types can be controlled by the manual control circuit, G type cannot be adjusted with the potentiometer)
Load Voltage: 220VAC / 380VAC
Load Current: Enhanced Type--15A, 35A, 55A, 75A, 120A, 150A, 190A, 240A, 290A, 350A; Ordinary type--10A, 25A, 40A; Half-Wave Type--10A, 25A, 50A
(Note: The current grade above is the maximum rms current of the internal thyristor of the module)
Dimensions & Mounting: 105mm*75mm*33mm; Panel mount solid state module with plastic cover, metal base and screw terminalsFeatures
● Modularization with high pressure resistant, safer and more reliable
● Miniaturization with convenience for installation, wiring and etc.
● Linear phase-shift control circuit with good stability and high precision
● Integrates the synchronous transformer, the phase detection circuit, the phase-shift trigger circuit and the thyristor output circuit.
● Complete electrical isolation between control signals and load signals
● LED status indicator
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Transparent cover for extra protectionDimensions and Circuit Wiring Diagram
MGR-DT Series Voltage Power Regulator
Take E type (CON 0~5V) as an example:
● ① and ② ports are the output terminals of the module (i.e., the two poles of the thyristor inside the module). ① and ② ports of the enhanced and the ordinary type have no polarity. The anode of the SCR thyristor inside the half-wave type module is connected to the ① port, and the cathode is connected to the ② port.
● ③ and ④ ports are the synchronous transformer primary inside the module, and the specification can be divided into 220VAC type and 380VAC type: 220VAC type can be used into the power grid at the range of 165-240VAC, 380VAC type can be used into the power grid at the range of 285-420VAC. ③ and ④ ports have no polarity.
● COM port is the internal common ground terminal, CON port is the control terminal, and the +5V port is the power supply generated inside the module only for the manual control of potentiometer. The strong current part (①, ②, ③, and ④ ports) and the weak current part (+5V, CON, and COM ports) are fully isolated.Application
● Applications that need voltage adjustment.
Precautions and FAQs
● The phase applied to the load through ① and ② ports must be consistent with the phase of ③ and ④ ports, otherwise the device will be out of control. And the frequency of the power grid must be 50 Hz.
● CON must be positive relative to COM, and if the polarity is opposite, the output terminal will be out of control (fully open or fully closed). When the control terminal CON changes from 0V to 5V, the voltage on the AC load can be adjusted from 0V to the maximum value (for resistive loads). When the control voltage on CON is around 0V~0.8V (Fully-closed Region), the control signal can reliably shut down the output of the module. When the control voltage on CON is around 0.8V~4.6V (Adjustable Region), the conduction angle α decreases linearly from 180° to 0° as the control voltage increases, and the voltage on the AC load increases from 0V to the maximum value. When the control voltage on CON is around 4.6V~5V (Full-open Region), the voltage on the AC load is the maximum value (close to the power grid voltage).
● The input impedance between CON and COM is divided into E, F and H type (the impedance of these three types are greater than or equal to 30KΩ), and G type (the impedance is 250Ω). The +5V voltage signal is only provided for the manual potentiometer (the selected resistance is between 2~10KΩ), not for other uses. Note: The G type (4~20mA as control signal) cannot be manually adjusted by the potentiometer, so the +5V port is useless for the G type.
● The speed control of the single phase AC asynchronous motor should be adjusted by the frequency converter, while the single phase voltage regulation module can only be applied to fan motors and pump motors where the requirements are not high.
● It is not possible to use three single phase voltage regulator modules to regulate the three phase load on the three phase power grid.
● The insulation voltage between the strong current part, the weak current part, and the module backplane is greater than 2000VAC.
● The heat of the whole module = Actual load current (Amps) * 1.5 W/Amps. Customers can select MG-L, MG-H series heat sink according to actual needs.
● For specifications and precautions for selecting the current grade, device protection, etc., please refer to the instruction of single phase AC solid state relays.All Regular Models We Offer
● MGR-DT Series (Single Phase, Full Isolation, Ordinary Type)
Load Voltage Single Phase 220VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT2210EG
- MGR-DT2225EG
- MGR-DT2240EG
Load Voltage Single Phase 220VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT2210F
- MGR-DT2225F
- MGR-DT2240F
Load Voltage Single Phase 220VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT2210H
- MGR-DT2225H
- MGR-DT2240H
Load Voltage Single Phase 380VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT3810EG
- MGR-DT3825EG
- MGR-DT3840EG
Load Voltage Single Phase 380VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT3810F
- MGR-DT3825F
- MGR-DT3840F
Load Voltage Single Phase 380VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT3810H
- MGR-DT3825H
- MGR-DT3840H
● MGR-DT Series (Single Phase, Full Isolation, Enhanced Type)
Load Voltage Single Phase 220VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT2215EG
- MGR-DT2235EG
- MGR-DT2255EG
- MGR-DT2275EG
- MGR-DT22120EG
- MGR-DT22150EG
- MGR-DT22190EG
- MGR-DT22240EG
- MGR-DT22290EG
- MGR-DT22350EG
Load Voltage Single Phase 220VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT2215F
- MGR-DT2235F
- MGR-DT2255F
- MGR-DT2275F
- MGR-DT22120F
- MGR-DT22150F
- MGR-DT22190F
- MGR-DT22240F
- MGR-DT22290F
- MGR-DT22350F
Load Voltage Single Phase 220VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT2215H
- MGR-DT2235H
- MGR-DT2255H
- MGR-DT2275H
- MGR-DT22120H
- MGR-DT22150H
- MGR-DT22190H
- MGR-DT22240H
- MGR-DT22290H
- MGR-DT22350H
Load Voltage Single Phase 380VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT3815EG
- MGR-DT3835EG
- MGR-DT3855EG
- MGR-DT3875EG
- MGR-DT38120EG
- MGR-DT38150EG
- MGR-DT38190EG
- MGR-DT38240EG
- MGR-DT38290EG
- MGR-DT38350EG
Load Voltage Single Phase 380VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT3815F
- MGR-DT3835F
- MGR-DT3855F
- MGR-DT3875F
- MGR-DT38120F
- MGR-DT38150F
- MGR-DT38190F
- MGR-DT38240F
- MGR-DT38290F
- MGR-DT38350F
Load Voltage Single Phase 380VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT3815H
- MGR-DT3835H
- MGR-DT3855H
- MGR-DT3875H
- MGR-DT38120H
- MGR-DT38150H
- MGR-DT38190H
- MGR-DT38240H
- MGR-DT38290H
- MGR-DT38350H
● MGR-DT Series (Single Phase, Full Isolation, Half-Wave Type)
Load Voltage Single Phase 220VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT2210XEG
- MGR-DT2225XEG
- MGR-DT2250XEG
Load Voltage Single Phase 220VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT2210XF
- MGR-DT2225XF
- MGR-DT2250XF
Load Voltage Single Phase 220VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT2210XH
- MGR-DT2225XH
- MGR-DT2250XH
Load Voltage Single Phase 380VAC, Control Signal: CON1 0-5V, CON2 4-20mA; Full Wave
- MGR-DT3810XEG
- MGR-DT3825XEG
- MGR-DT3850XEG
Load Voltage Single Phase 380VAC, Control Signal: CON 0-10V; Full Wave
- MGR-DT3810XF
- MGR-DT3825XF
- MGR-DT3850XF
Load Voltage Single Phase 380VAC, Control Signal: CON 1-5V; Full Wave
- MGR-DT3810XH
- MGR-DT3825XH
- MGR-DT3850XH
(E type: CON 0-5V; F type: CON 0-10V; G type: CON 4-20mA; H type: CON 1-5V)
*Customized models are available, be free to contact us.
Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
