MGR-ZK Series
Solid State Rectifier

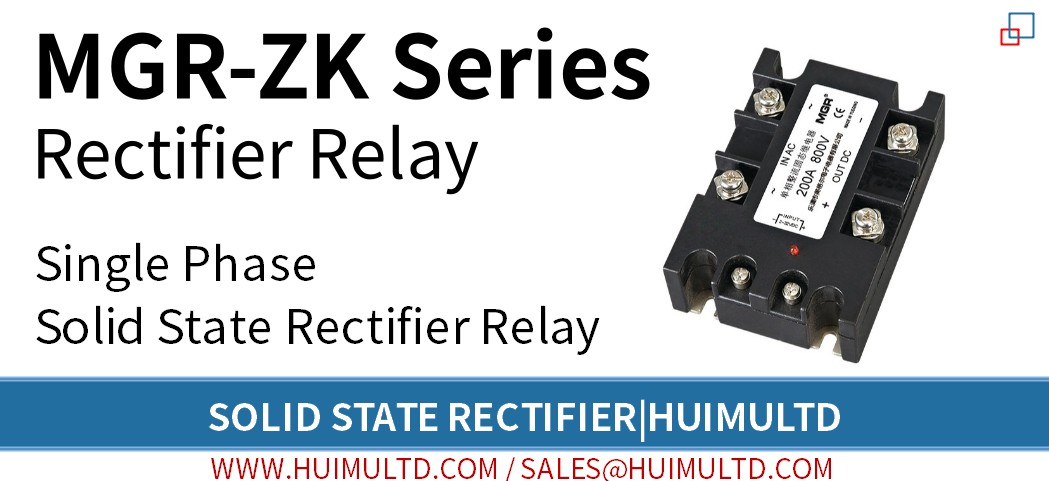

MGR-ZK Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


SSR-ZK Series Single Phase Solid State Rectifier Relay has built-in rectifier circuit (rectifier function) and switch circuit (electronic switch function), which can be directly connected to the single-phase AC power supply and the DC load, and be controlled by DC control signal. According to rated voltage, MGR-ZK Series can be divided into MGR-ZK80 series (800VAC) and MGR-ZK120 series (1200VAC).

How to order


How to order MGR-ZK Series Solid State Rectifier

MGR-ZK (Single Phase Solid State Rectifier Relay)
  - [Load Voltage] {80 (800VAC); 120 (1200VAC)}
  - [Rated Current]

Parameters


MGR-ZK80 Series img

MGR-ZK80 Series

Control Voltage:  3~32VDC (such as 3VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra-low input current, ≤20mA
Power Voltage:  Single phase 800VAC
Load Current:  100A, 200A
Dimensions & Mounting:  105mm*75mm*33mm; Panel mount solid state relay with plastic cover, metal base and screw terminals

MGR-ZK120 Series img

MGR-ZK120 Series

Control Voltage:  3~32VDC (such as 3VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤20mA
Load Voltage:  Single phase 1200VAC
Load Current:  100A, 200A
Dimensions & Mounting:  105mm*75mm*33mm; Panel mount solid state relay with plastic cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit

Dimensions and Circuit Wiring Diagram


MGR-ZK Series

MGR-ZK Series Dimensions

Application


● Applications that need single phase rectifier and electronic switch.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

All Regular Models We Offer


● MGR-ZK80 Series (Single Phase)

Load voltage Single Phase 800VAC

● MGR-ZK120 Series (Single Phase)

Load voltage Single Phase 1200VAC

*Customized models are available, be free to contact us.
