MGR-1KB Series
Panel Mount Solid State Relay

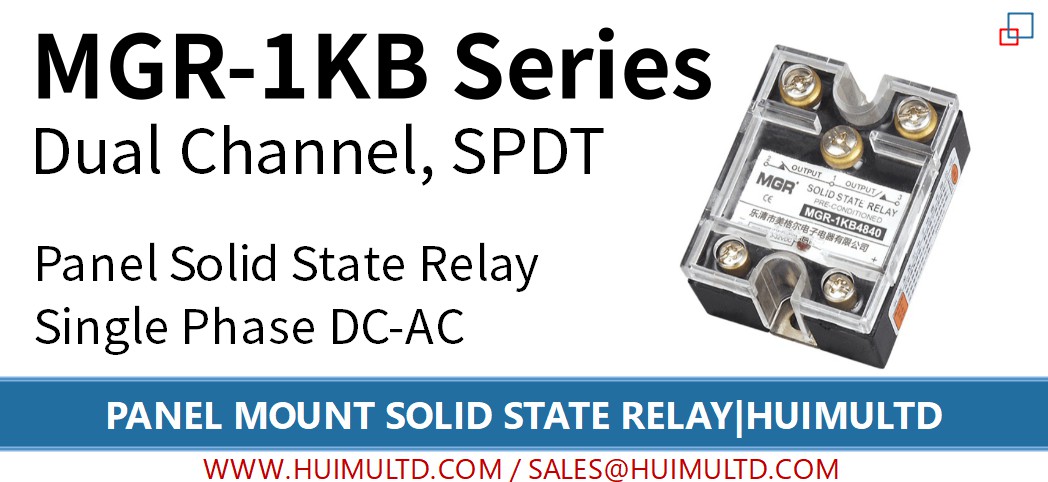

MGR-1KB Series Panel Mount Solid State Relay

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]


MGR-1KB Series Dual Channel Panel Mount DC to AC Solid State Relay is a SPDT DC to AC solid state relay that uses one control signal to control two different loads (These two loads work under the same power supply, and only one load can be turned on at the same time).

How to order

How to order MGR-1KB Series Panel Mount Solid State Relay

MGR-1KB (Panel Mount, Dual Channel, SPDT, Single Phase, DC-AC)
  - [Load Voltage] {(48 (24-480VAC)}
  - [Rated Current]


MGR-1KB Series img

MGR-1KB Series

Control Voltage:  3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤20mA
Load Voltage:  Single phase 24-480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover, metal base and screw terminals


● TRIAC as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Transparent cover for extra protection

Dimensions and Circuit Wiring Diagram

MGR-1KB Series Panel Mount Solid State Relay

MGR-1KB Series Panel Mount Solid State Relay Diagram


● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to heavy industrial, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.
● One control signal, one power supplier, and two different loads; and only one load is ON at the same time.

Precautions and FAQs

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.
● What is the SPDT solid state relay?
SPDT solid state relay can control two different loads with one control signal, and only one load can be switched on at the same time. If you want to know more about SPDT SSR, please visit What is SPDT Switch and SPDT SSR?

All Regular Models We Offer

● MGR-1KB Series (Dual Channel, SPDT, DC to AC)

Load voltage 24~480VAC

  • MGR-1KB4810
  • MGR-1KB4815
  • MGR-1KB4820
  • MGR-1KB4825
  • MGR-1KB4830
  • MGR-1KB4840

*Customized models are available, be free to contact us.


1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
