MGR-HVR Series
Voltage Power Regulator
[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]
Introduction

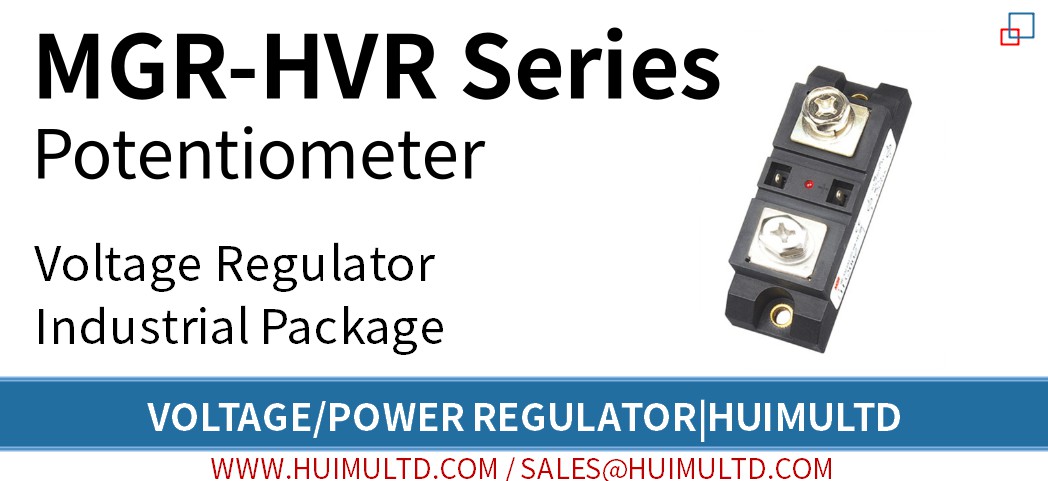

MGR-HVR Series Potentiometer Type Solid State Voltage Regulator uses Industrial Package (long strip shape). Through the adjustment of potentiometer, MGR-HVR Series can stepless control the load voltage of the single phase AC load. According to the output current, it can be divided into Normal Type and Large Current Type.
How to order
MGR-HVR (Single Phase Potentiometer Type Voltage Regulator, Industrial Package)
- [Rated Current]Parameters
MGR-HVR Series
Control Method: Manual Control--Adjustable Potentiometer (470K, 680K, 820K)
Load Voltage: 0~480VAC (such as 24VAC, 36VAC, 48VAC, 110VAC/120VAC, 220VAC/230VAC, 480VAC or customized voltage)
Load Current: 60A, 80A, 100A, 120A, 125A
Dimensions & Mounting: 94mm*25mm*38mm; Panel mount solid state relay with metal base and screw terminalsMGR-HVR Series (Large Current)
Control Voltage: Manual Control--Adjustable Potentiometer (470K, 680K, 820K)
Load Voltage: 0~480VAC (such as 24VAC, 36VAC, 48VAC, 110VAC/120VAC, 220VAC/230VAC, 480VAC or customized voltage)
Load Current: 150A, 200A, 300A, 400A
Dimensions & Mounting: 94mm*34mm*42mm; Panel mount solid state relay with metal base and screw terminalsFeatures
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Fully compatible with different control methods, allowing the computer to easily adjust voltage through the networkDimensions and Circuit Wiring Diagram
MGR-HVR Series Voltage Power Regulator
Normal Type
Large Current Type
Application
● Applications that need voltage adjustment.
Precautions and FAQs
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What is the difference between a Standard Package SSR (TRIAC output) and an Industrial Package SSR (anti-parallel SCR output)?
For resistive AC loads, the difference between the two is small. Standard Package can use up to M5 screws, while Industrial Package can use up to M8 screws.
For inductive or capacitive AC loads, when the solid state relay is turned off in the on state, a large voltage-rise rate dv/dt (commutation dv/dt) will occur due to the inconsistent phase of the current and voltage. Such dv/dt affects the output efficiency of TRIAC, or even damages TRIAC, but the effect of commutation dv/dt on anti-parallel SCR is very small. Therefore, for AC loads with large inductance or capacitance, it is more suitable to choose industrial solid state relays.All Regular Models We Offer
● MGR-HVR Series (Single Phase, Industrial Package)
Load Voltage 0~480VAC, Normal Type
- MGR-HVR60A
- MGR-HVR80A
- MGR-HVR100A
- MGR-HVR120A
- MGR-HVR125A
Load Voltage 0~480VAC, Large Current Type
- MGR-HVR150A
- MGR-HVR200A
- MGR-HVR300A
- MGR-HVR400A
*Customized models are available, be free to contact us.
