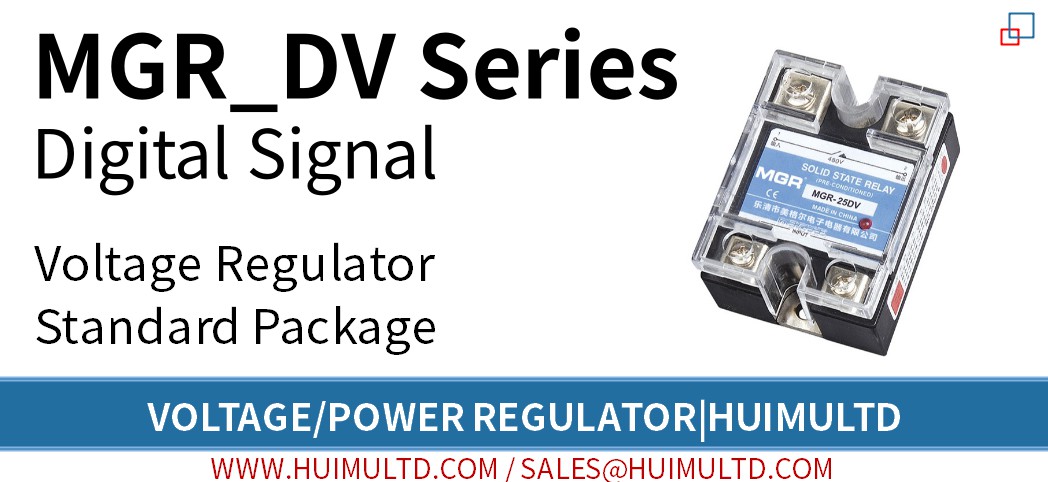

MGR_DV Series
Voltage Power Regulator

MGR-DV Series Voltage Power Regulator

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MGR-DV Series Digital Signal Type Solid State Voltage Regulator uses Standard Package. Through automatic digital control signal (Pulsed Voltage), MGR-DV Series can control the load voltage of the single phase AC load.

How to order


How to order MGR-DV Series Voltage Power Regulator

MGR (Single Phase Digital Signal Type Voltage Regulator, Standard Package)
  - [Rated Current]
  - DV (Pulse Signal)

Parameters


MGR-1VD Series img

MGR-1VD Series

Control Method:  Automatic Control--Pulse Signal
Load Voltage:  24~380VAC (such as 24VAC, 36VAC, 85VAC, 110VAC/120VAC, 220VAC/230VAC, 380VAC or customized voltage)
Load Current:  10A, 25A, 40A, 60A, 80A, 100A, 120A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Fully compatible with different control methods, allowing the computer to easily adjust voltage through the network

Dimensions and Circuit Wiring Diagram


MGR-DV Series Voltage Power Regulator

MGR-DV Series Voltage Power Regulator Diagram

Application


● Applications that need voltage adjustment.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

All Regular Models We Offer


● MGR-DV Series (Single Phase, Digital Signal)

Load Voltage 24~380VAC

  • MGR-10DV
  • MGR-25DV
  • MGR-40DV
  • MGR-60DV
  • MGR-80DV
  • MGR-100DV
  • MGR-120DV

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
