MGR-1VD Series
Voltage Power Regulator

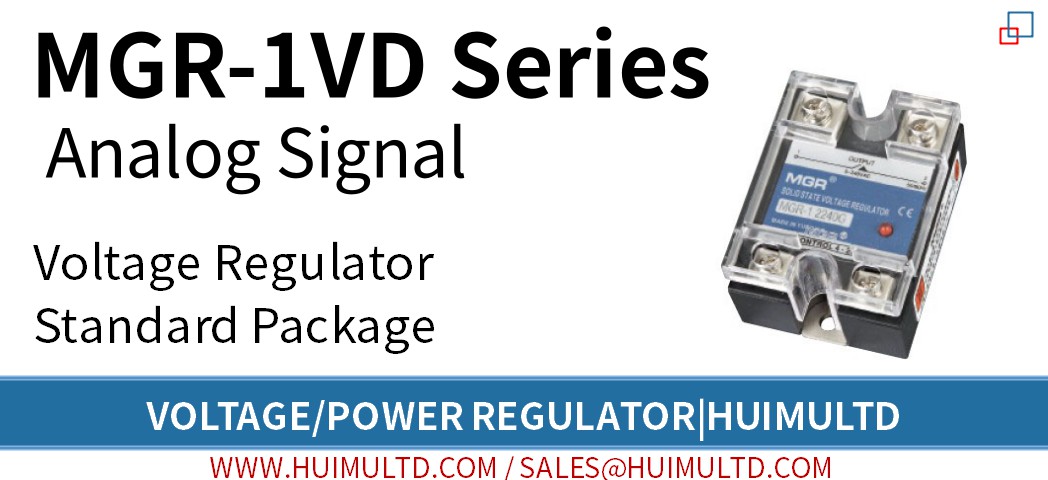

MGR-1VD Series Voltage Power Regulator

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MGR-1VD Series Analog Signal Type Solid State Voltage Regulator uses Standard Package. Through automatic analog control signal (Continuous Voltage, E: 0-5VDC; F: 0-10VDC; G: 4-20mA), MGR-1VD Series can stepless control the load voltage of the single phase AC load.

How to order


How to order MGR-1VD Series Voltage Power Regulator

MGR-1VD (Single Phase Analog Signal Type Voltage Regulator, Standard Package)
  - [Load Voltage] {24 (240VAC); 38 (380VAC)}
  - [Rated Current]
  - [Control Signal] {E (0~5VDC);  F (0~10VDC); G (4~20mA)}

Parameters


MGR-1VD Series img

MGR-1VD Series

Control Method:  Automatic Control--E: 0-5VDC; F: 0-10VDC; G: 4-20mA
Load Voltage:  0~240VAC; 0~380VAC
Load Current:  10A, 25A, 40A, 60A, 80A, 100A, 120A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Fully compatible with different control methods, allowing the computer to easily adjust voltage through the network

Dimensions and Circuit Wiring Diagram


MGR-1VD Series Voltage Power Regulator

MGR-1VD Series Voltage Power Regulator Diagram

Application


● Applications that need voltage adjustment.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

All Regular Models We Offer


● MGR-1VD Series (Single Phase, Analog Signal)

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-5VDC

  • MGR-1VD2410E
  • MGR-1VD2425E
  • MGR-1VD2440E
  • MGR-1VD2460E
  • MGR-1VD2480E
  • MGR-1VD24100E
  • MGR-1VD24120E

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-10VDC

  • MGR-1VD2410F
  • MGR-1VD2425F
  • MGR-1VD2440F
  • MGR-1VD2460F
  • MGR-1VD2480F
  • MGR-1VD24100F
  • MGR-1VD24120F

Load Voltage 0~240VAC, 0~380VAC; Control Signal 4-20mA

  • MGR-1VD2410G
  • MGR-1VD2425G
  • MGR-1VD2440G
  • MGR-1VD2460G
  • MGR-1VD2480G
  • MGR-1VD24100G
  • MGR-1VD24120G

(E type: CON 0-5VDC; F type: CON 0-10VDC; G type: CON 4-20mA)

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
