MTQ, MFS Series
Solid State Rectifier

MTQ, MFS Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com.]

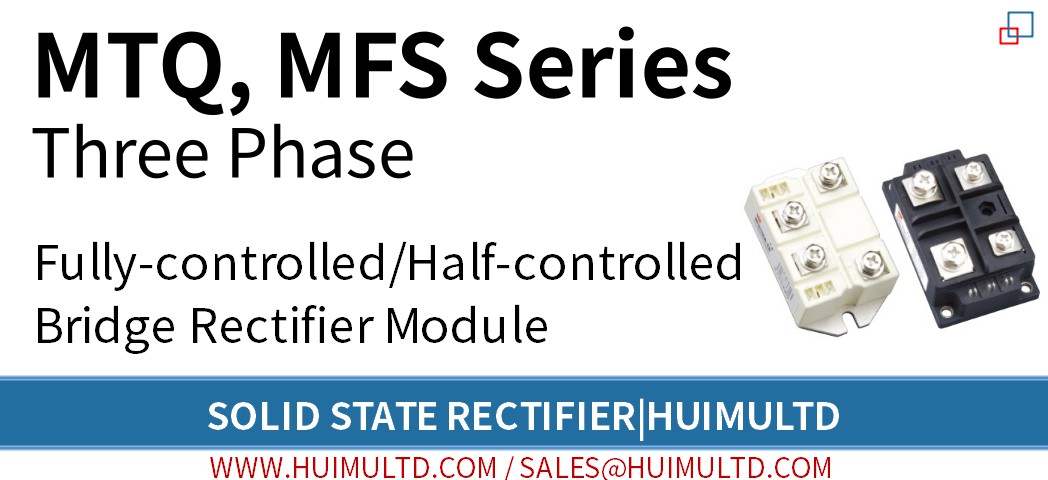

MTQ, MFS Series Three Phase Fully-Controlled / Half-Controlled Solid State Bridge Rectification Modules are available in a wide range of applications.

How to order

How to order MTQ, MFS Series Solid State Rectifier

[Series] {MTQ; MFS}
  - [Rated Current]


MTQ, MFS Series img

MTQ, MFS Series

Load Current: 60A, 90A, 130A, 150A, 200A, 300A, 450A
Dimensions & Mounting: Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals


● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Low forward voltage drop
● Maximum operating junction temperature up to 150 ℃
● Compact dimensions and light weight

Dimensions and Circuit Wiring Diagram

MTQ, MFS Series

MTQ, MFS Series Diagram


● DC power supply of the instruments and equipment
● Input rectification power supply of the PWM inverter
● Excitation power supply of the DC motor
● Input rectification system of switching power supply
● Soft start capacitor charging system
● Electrical drive and auxiliary current
● Inverter welder
● DC power charging system

Precautions and FAQs

● In addition to VFM and VISOL, the other parameters in the table are the test values under Tjm.

All Regular Models We Offer

● MTQ, MFS Series

MTQ, MFS Series Type Solid State Rectifier List

Note: The MTx in the model column indicates any one series of MTS, and MFS.
The domestic models corresponding to the imported models SKKT, IR, PD, 2RI, 100L etc., are subject to the circuit diagram.

*Customized models are available, be free to contact us.


1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Blog - Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
