MGR-DQZ Series
Solid State Rectifier

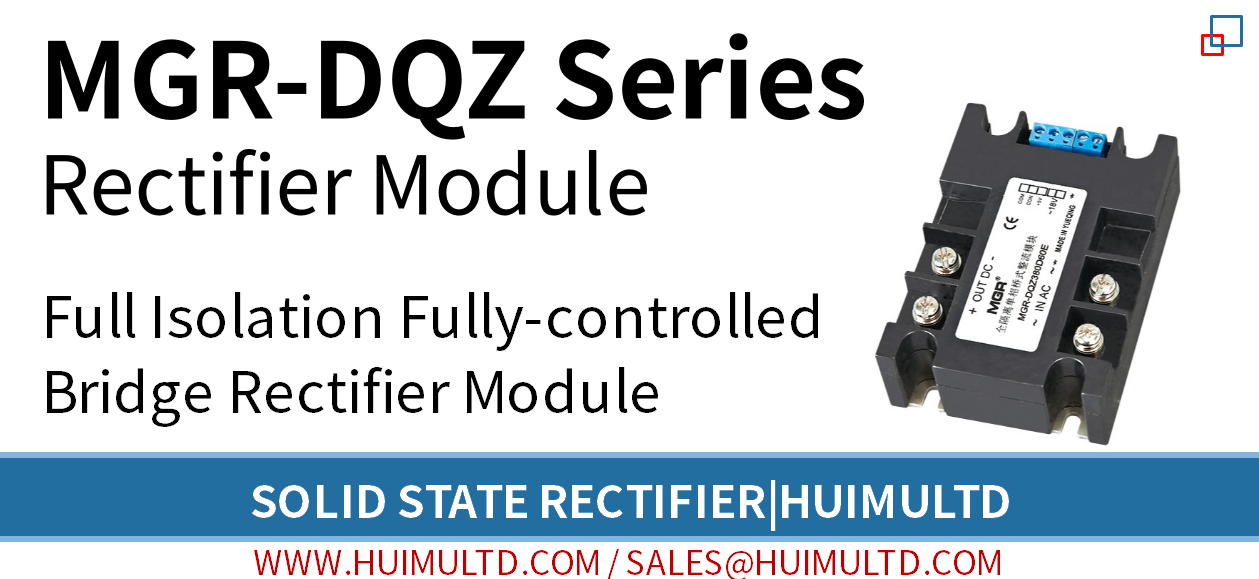

MGR-DQZ Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MGR-DQZ Series Single Phase Full Isolation Fully-Controlled Voltage Regulation Bridge Rectification Module integrates the fully-controlled bridge rectifier (consisting of four SCR thyristors), the voltage regulation circuit (or the phase-shift circuit), and the trigger circuit. Under the AC synchronous voltage (18VAC) provided by external device, the conduction angle of the four SCR thyristors can be changed by the automatic control method or manual control method (i.e. the external potentiometer), which means the single phase AC voltage can be easily converted into the pulsed DC voltage with the continuously adjustable amplitude. The output voltage can be regulated by means of the control signal, which can be divided into five types: Type E (0-5VDC), Type F (0-10VDC), Type H (1-5VDC), Type G (4-20mA), and Manual Control Type (potentiometer). According to the rated voltage, MGR-DQZ Series can be divided into MGR-DQZ36 Series (20~50VAC), MGR-DQZ110 Series (50~120VAC), MGR-DQZ220 Series (120~250VAC), and MGR-DQZ380 Series (180~450VAC).

How to order


How to order MGR-DQZ Series Solid State Rectifier

MGR-DQZ (Single Phase Full Isolation Fully-Controlled Voltage Regulation Bridge Rectification Module)
  - [Load Voltage] {36D (36VAC); 110D (110VAC); 220D (220VAC); 380D (380VAC)}
  - [Rated Current]
  - [Control Signal] {E (0~5VDC); F (0~10VDC); G (4~20mA); H (1~5VDC)}

Parameters


MGR-DQZ Series img

MGR-DQZ Series

Control Voltage: 3~32VDC (such as 3VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Signal: E: CON 0~5V; F: CON 0~10V; G: CON 4~20mA; H: CON 1-5V
*(E, F, H types can be controlled by the manual control circuit, G type cannot be adjusted with the potentiometer)
Load Voltage: 36VAC (20~50VAC); 110VAC (50~120VAC); 220VAC (120~250VAC); 380VAC (180~450VAC)
Load Current: 15A, 35A, 75A, 120A, 150A, 190A
Dimensions & Mounting: 105mm*75mm*33mm; Panel mount solid state module with plastic cover, metal base and screw terminals

Features


● Modularization with high pressure resistant, safer and more reliable
● Miniaturization with convenience for installation, wiring and etc.
● Integrated bridge rectification and voltage regulation

Dimensions and Circuit Wiring Diagram


MGR-DQZ Series

MGR-DQZ Series Diagram

● ① and ② ports are the AC power supply input terminals of the module, and the voltage grade can be divided into 380VAC, 220VAC, 110VAC and 36VAC.
● ③ and ④ are DC output positive and negative terminals of the load voltage respectively.
● ⑤ and ⑥ ports are the synchronous voltage input terminals, allowing the input voltage with amplitudes of 18 ± 5 VAC (synchronized with AC power supply of ① and ② ports). ⑤ and ② ports are synchronous terminals.
● ⑦, ⑧ and ⑨ ports are +5V port, CON port and COM port respectively. COM port is the internal common ground terminal, CON port is the control terminal, and the +5V port is the power supply generated inside the module only for the manual control of potentiometer. The strong current part (①, ②, ③, and ④ ports) and the weak current part (⑤, ⑥, ⑦, ⑧, and ⑨ ports) are fully isolated.

Application


● Applications that need single phase full isolation and fully control.
● Applications that require simultaneous rectification and voltage regulation.

Precautions and FAQs


● When the output terminal of the module is connected in parallel with an electrolytic capacitor to filter, the voltage across the capacitor cannot be abruptly changed, so in this high-voltage and large-capacity case, the module will be damaged due to overcurrent. Therefore, before the module is powered on, it must ensure that the voltage on the control terminal CON is 0V, and after power-on, the voltage on the control terminal CON must be gradually increased from 0V to ensure the minimum surge current of the capacitor.
● CON must be positive relative to COM, and if the polarity is opposite, the output terminal will be out of control (fully open or fully closed). When the control terminal CON changes from 0V to 5V, the voltage on the AC load can be adjusted from 0V to the maximum value (for resistive loads). When the control voltage on CON is around 0V~0.8V (Fully-closed Region), the control signal can reliably shut down the output of the module. When the control voltage on CON is around 0.8V~4.6V (Adjustable Region), the conduction angle α decreases linearly from 180° to 0° as the control voltage increases, and the voltage on the AC load increases from 0V to the maximum value. When the control voltage on CON is around 4.6V~5V (Full-open Region), the voltage on the AC load is the maximum value (close to the power grid voltage).
● The input impedance between CON and COM is divided into E, F and H type (the impedance of these three types are greater than or equal to 30KΩ), and G type (the impedance is 250Ω). The +5V voltage signal is only provided for the manual potentiometer (the selected resistance is between 2~10KΩ), not for other uses. Note: The G type (4~20mA as control signal) cannot be manually adjusted by the potentiometer, so the +5V port is useless for the G type.
● When ⑤ and ② ports are not synchronous, the whole module has no output, but such problem can be solved by switching the two cables on ⑤ and ⑥ ports. The synchronous transformer power can be 2W, and our company can supply synchronous transformers with 220V/18V (2W), 380V/18V (2W) specification.
● The heat of the whole module = Actual load current (Amps) * 3.0 W/Amps. Customers can select MG-L, MG-H series heat sink according to actual needs.
● The insulation voltage between the strong current part, the weak current part, and the module backplane is greater than 2000VAC.
● The single phase rectification module must be applied to a 50 Hz frequency power grid. Besides, the 380V type must be applied to the 180~450VAC power grid; the 220V type must be applied to 120~250VAC power grid; the 110V type must be applied to 50~120VAC power grid; the 36V type must be applied to 20~50VAC. And the synchronous voltage on ⑤ and ⑥ ports must be 18 ± 5 VAC.
● For specifications and precautions for selecting the current grade, device protection, etc., please refer to the instruction of single phase AC solid state relays.

All Regular Models We Offer


● MGR-DQZ36 Series (Single Phase, Full Isolation, Fully Control)

Load voltage Single Phase 20-50VAC; Control Signal: CON 0-5V; Full Wave

  • MGR-DQZ36D15E
  • MGR-DQZ36D35E
  • MGR-DQZ36D75E
  • MGR-DQZ36D120E
  • MGR-DQZ36D150E
  • MGR-DQZ36D190E

Load voltage Single Phase 20-50VAC; Control Signal: CON 0-10V; Full Wave

  • MGR-DQZ36D15F
  • MGR-DQZ36D35F
  • MGR-DQZ36D75F
  • MGR-DQZ36D120F
  • MGR-DQZ36D150F
  • MGR-DQZ36D190F

Load voltage Single Phase 20-50VAC; Control Signal: CON 4-20mA; Full Wave

  • MGR-DQZ36D15G
  • MGR-DQZ36D35G
  • MGR-DQZ36D75G
  • MGR-DQZ36D120G
  • MGR-DQZ36D150G
  • MGR-DQZ36D190G

Load voltage Single Phase 20-50VAC; Control Signal: CON 1-5V; Full Wave

  • MGR-DQZ36D15H
  • MGR-DQZ36D35H
  • MGR-DQZ36D75H
  • MGR-DQZ36D120H
  • MGR-DQZ36D150H
  • MGR-DQZ36D190H

● MGR-DQZ110 Series (Single Phase, Full Isolation, Fully Control)

Load voltage Single Phase 50-120VAC; Control Signal: CON 0-5V; Full Wave

  • MGR-DQZ110D15E
  • MGR-DQZ110D35E
  • MGR-DQZ110D75E
  • MGR-DQZ110D120E
  • MGR-DQZ110D150E
  • MGR-DQZ110D190E

Load voltage Single Phase 50-120VAC; Control Signal: CON 0-10V; Full Wave

  • MGR-DQZ110D15F
  • MGR-DQZ110D35F
  • MGR-DQZ110D75F
  • MGR-DQZ110D120F
  • MGR-DQZ110D150F
  • MGR-DQZ110D190F

Load voltage Single Phase 50-120VAC; Control Signal: CON 4-20mA; Full Wave

  • MGR-DQZ110D15G
  • MGR-DQZ110D35G
  • MGR-DQZ110D75G
  • MGR-DQZ110D120G
  • MGR-DQZ110D150G
  • MGR-DQZ110D190G

Load voltage Single Phase 50-120VAC; Control Signal: CON 1-5V; Full Wave

  • MGR-DQZ110D15H
  • MGR-DQZ110D35H
  • MGR-DQZ110D75H
  • MGR-DQZ110D120H
  • MGR-DQZ110D150H
  • MGR-DQZ110D190H

● MGR-DQZ220Series (Single Phase, Full Isolation, Fully Control)

Load voltage Single Phase 120-250VAC; Control Signal: CON 0-5V; Full Wave

  • MGR-DQZ220D15E
  • MGR-DQZ220D35E
  • MGR-DQZ220D75E
  • MGR-DQZ220D120E
  • MGR-DQZ220D150E
  • MGR-DQZ220D190E

Load voltage Single Phase 120-250VAC; Control Signal: CON 0-10V; Full Wave

  • MGR-DQZ220D15F
  • MGR-DQZ220D35F
  • MGR-DQZ220D75F
  • MGR-DQZ220D120F
  • MGR-DQZ220D150F
  • MGR-DQZ220D190F

Load voltage Single Phase 120-250VAC; Control Signal: CON 4-20mA; Full Wave

  • MGR-DQZ220D15G
  • MGR-DQZ220D35G
  • MGR-DQZ220D75G
  • MGR-DQZ220D120G
  • MGR-DQZ220D150G
  • MGR-DQZ220D190G

Load voltage Single Phase 120-250VAC; Control Signal: CON 1-5V; Full Wave

  • MGR-DQZ220D15H
  • MGR-DQZ220D35H
  • MGR-DQZ220D75H
  • MGR-DQZ220D120H
  • MGR-DQZ220D150H
  • MGR-DQZ220D190H

● MGR-DQZ380Series (Single Phase, Full Isolation, Fully Control)

Load voltage Single Phase 180-450VAC; Control Signal: CON 0-5V; Full Wave

  • MGR-DQZ380D15E
  • MGR-DQZ380D35E
  • MGR-DQZ380D60E
  • MGR-DQZ380D75E
  • MGR-DQZ380D120E
  • MGR-DQZ380D150E
  • MGR-DQZ380D190E

Load voltage Single Phase 180-450VAC; Control Signal: CON 0-10V; Full Wave

  • MGR-DQZ380D15F
  • MGR-DQZ380D35F
  • MGR-DQZ380D75F
  • MGR-DQZ380D120F
  • MGR-DQZ380D150F
  • MGR-DQZ380D190F

Load voltage Single Phase 180-450VAC; Control Signal: CON 4-20mA; Full Wave

  • MGR-DQZ380D15G
  • MGR-DQZ380D35G
  • MGR-DQZ380D75G
  • MGR-DQZ380D120G
  • MGR-DQZ380D150G
  • MGR-DQZ380D190G

Load voltage Single Phase 180-450VAC; Control Signal: CON 1-5V; Full Wave

  • MGR-DQZ380D15H
  • MGR-DQZ380D35H
  • MGR-DQZ380D75H
  • MGR-DQZ380D120H
  • MGR-DQZ380D150H
  • MGR-DQZ380D190H

(E type:CON 0-5V; F type:CON 0-10V; G type:CON 4-20mA; H type:CON 1-5V)

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
