MGR-3ZK Series
Solid State Rectifier

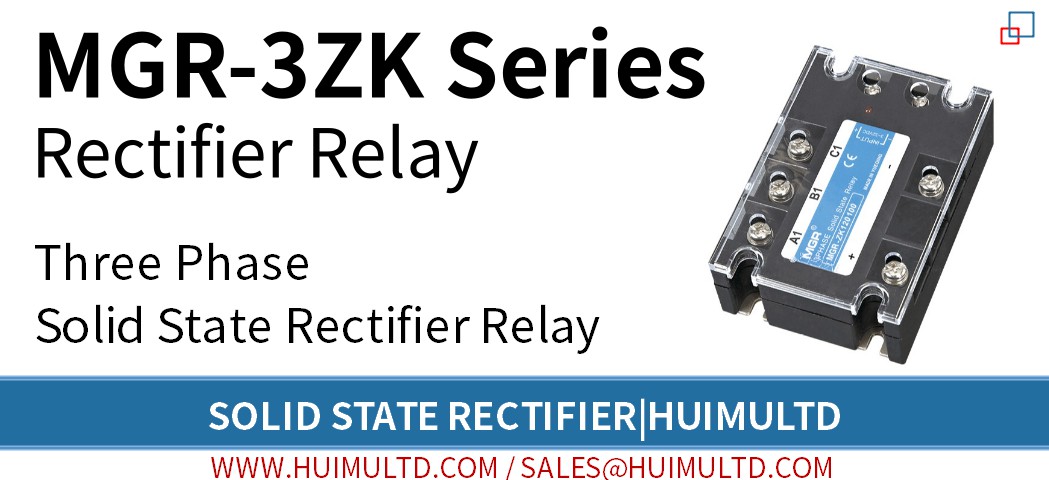

MGR-3ZK Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


SSR-3ZK Series Three Phase Solid State Rectifier Relay has built-in rectifier circuit (rectifier function) and switch circuit (electronic switch function), which can be directly connected to the three-phase AC power supply and the DC load, and be controlled by DC control signal.

How to order


How to order MGR-3ZK Series Solid State Rectifier

MGR-3ZK (Three Phase Solid State Rectifier Relay)
  - [Load Voltage] {48(480VAC); 120 (1200VAC)}
  - [Rated Current]

Parameters


MGR-3ZK Series img

MGR-3ZK Series

Control Voltage:  3~32VDC (such as 3VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤20mA
Load Voltage:  Three phase, 480VAC(24~480VAC), 1200VAC(24~1200VAC)
Load Current:  100A, 200A
Dimensions & Mounting:  105mm*75mm*33mm; Panel mount solid state relay with transparent cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit

Dimensions and Circuit Wiring Diagram


MGR-3ZK Series

MGR-3ZK Series Dimensions

Application


● Applications that need three phase rectifier and electronic switch.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

All Regular Models We Offer


● MGR-3ZK Series (Three Phase)

Load voltage Three Phase 480VAC

  • MGR-3ZK48-100
  • MGR-3ZK48-200

Load voltage Three Phase 1200VAC

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
