Solid State Rectifier

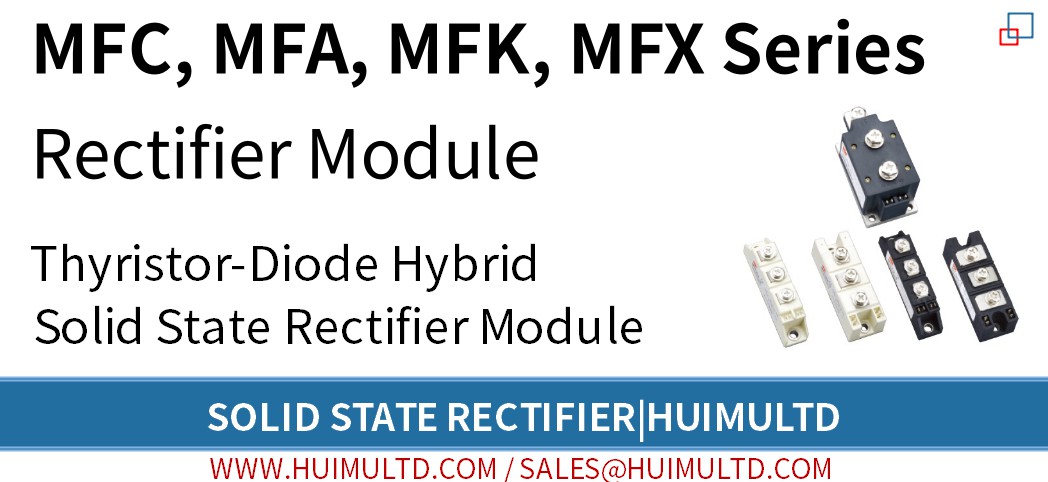

MFC, MFA, MFK, MFX Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]


MF Series Solid State Thyristor-Diode Hybrid Modules is a kind of special Solid State Rectification Modules which is available in a wide range of applications. According to the control mode, MF Series can be divided into MFC Series, MFA Series, MFK Series and MFX Series. According to the process, MF Series can be divided into DT type (Diode-Thyristor) and TD type (Thyristor-Diode).

How to order

How to order MFC, MFA, MFK, MFX Series Solid State Rectifier

[Series] {MFC; MFA; MFK; MFX}
  - [Rated Current]


MFC, MFA, MFK, MFX Series img


Load Current:  25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions & Mounting: Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals


● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Crimp style structure, excellent thermal cycling and power cycle capability
● If the current is below 350A, the module is cooled by forced air cooling; if the current is more than 400A, the cooling method can be either air-cooling or water-cooling.
● Easy to install, easy to apply and maintain
● Compact dimensions and low weight

Dimensions and Circuit Wiring Diagram


MFC, MFA, MFK, MFX Series Diagram


● Control system of AC and DC motor
● Various rectification power supplies
● Industrial heating control system
● Lighting system
● Contactless switch
● Motor soft start
● Static var compensator
● Welding machine
● Frequency converter
● UPS power supply
● Battery charging and discharging

Precautions and FAQs

● Unless otherwise stated, IGT, VGT, IH, VTM, and VISO are all tested at 25 °C, and other parameters in the table are tested at Tjm.
● I2t=I2TSM×tw/2; In the formula, tw=half period of sinusoidal current. If the frequency is 50Hz, I2t=0.005I2TSM (Amps2 sec).

All Regular Models We Offer

● MFC, MFA, MFK, MFX Series

MFC, MFA, MFK, MFX Series Types Solid State Rectifier

Note: The MFx in the model column indicates any one series of MFC, MFK, MFA, and MFX.
The domestic models corresponding to the imported models TM, SKKH, PD, IR, PE, TD, etc., are subject to the circuit diagram.

*Customized models are available, be free to contact us.


1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Blog - Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
