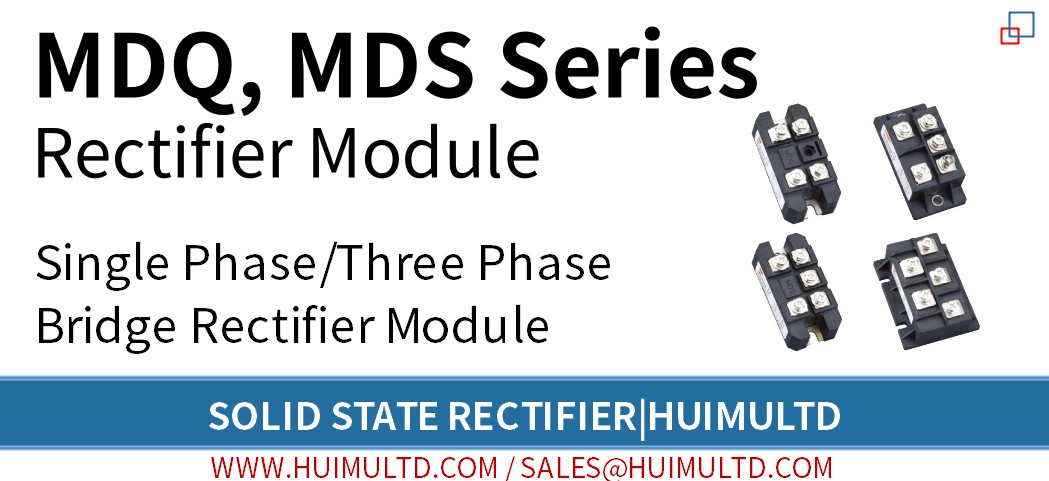

MDQ, MDS Series
Solid State Rectifier

MDQ, MDS Series Solid State Rectifier

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MDQ, MDS Series Single Phase / Three Phase Solid State Bridge Rectification Modules are available in a wide range of applications. MDQ Series is single phase bridge rectification module, MDS Series is three phase bridge rectification module.

How to order


How to order MDQ, MDS Series Solid State Rectifier

[Series] {MDQ (Single Phase Bridge Rectification Module); MDS (Three Phase Bridge Rectification Module)}
  - [Rated Current]

Parameters


MDQ, MDS Series img

MDQ, MDS Series

Load Current: 25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions Mounting: Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Features


● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Low forward voltage drop
● Maximum operating junction temperature up to 150 ℃
● Compact dimensions and low weight

Dimensions and Circuit Wiring Diagram


MDQ, MDS Series

MDQ, MDS Series Diagram

Application


● DC power supply of the instruments and equipment
● Input rectification power supply of the PWM inverter
● Excitation power supply of the DC motor
● Input rectification system of switching power supply
● Soft start capacitor charging system
● Electrical drive and auxiliary current
● Inverter welder
● DC power charging system

Precautions and FAQs


● VRSM=VRRM+200V
● In addition to VFM and VISOL, the other parameters in the table are the test values under Tjm.

All Regular Models We Offer


● MDQ Series

MDQ Series Single Phase Bridge Rectifier Module Type

● MDS Series

MDS Series Single Phase Bridge Rectifier Module Type

Note: Single phase bridge rectification module (MDQ); the domestic models corresponding to the imported models SKCH, DF, VHF etc., are subject to the circuit diagram.
Three phase bridge rectification module (MDS); the domestic models corresponding to the imported models 6RI, RM, DF etc., are subject to the circuit diagram.

*Customized models are available, be free to contact us.
