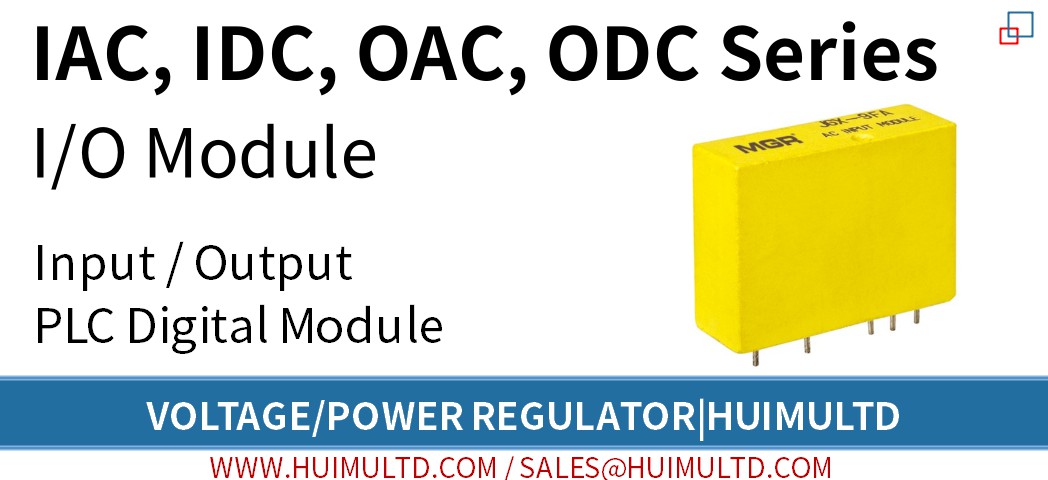

I, O Series
PLC Digital I/O Module

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com.]

Introduction

---

PLC Digital I/O Modules are the collective name for PLC Digital Input Modules and PLC Digital Output Modules. They have excellent anti-interference and compatibility, and are used for signal interaction between PLC and sensors or actuators. According to the input and output signals, our PLC Digital I/O Modules are divided into IAC Series (AC signal input), IDC Series (DC signal input), OAC Series (AC signal output), and ODC Series (DC signal output). Each series uses a different striking color plastic case (yellow, white, black, red) for easy differentiation.

How to order

---

[Series] {IAC (AC input module - Yellow housing); IDC (DC input module - White housing); OAC (AC output module - Black housing); ODC (DC output module - Red housing)}
  - [Logic Signal] {5 (5VDC); 15 (15VDC); 24 (24VDC)}
  - [Option]
    E : IAC series — 18~36VAC/VDC input
    F : IDC series — 4~32VDC input & fast on & off time
    H : OAC series — 5A, 24~280VAC, zero crossing voltage output
    R : OAC series — 5A, 12~280VAC, random fire voltage output
    Blank :
           IAC series — 120VAC/VDC input (90~140VAC/VDC)
           IDC series — 3.3~32VDC input**
                                 10~60VDC input**
           OAC series — 3A, 24~280VAC, zero crossing voltage input
           ODC series — 3A, 3~60VDC input
                                  1A, 3~250VDC input

Parameters

---

● Isolation voltage: 4000Vrms,60Hz
● Capacitance: 8PF typical (input to output)
● Operating temperature: -30℃~+80℃
● Storage temperature: -40℃~+85℃
● Approximate weight: 35g

Features

---

● Industry standard package and pin
● Differentiate each module product series by color
● 4000Vrms optical isolation
● Excellent anti-interference ability
● Compatible with the same type product of other companies

Dimensions and Circuit Wiring Diagram

---

Dimensions

Circuit Wiring Diagram

Application

---

● Various commercial and industrial digital equipment that requires an digital I/O module, especially but not limited to Programmable Logic Controller system, compute control system, Numerical Control Machinery.

Precautions and FAQs

---

We recommend that customers carefully review the technical data in our manuals and select the product model based on your own product design parameters to ensure that our products meet your specific application.

All Regular Models We Offer

---

● IAC Series (AC Input)

• IAC-5
• IAC-5A
• IAC-5E
• IAC-15
• IAC-24

● IDC Series (DC Input)

• IDC-5
• IDC-24

● OAC Series (AC Output)

• OAC-5
• OAC-5A
• OAC-5H
• OAC-15
• OAC-24
• OAC-24A

● ODC Series (DC Output)

• ODC-5
• ODC-5A
• ODC-15
• ODC-15A
• ODC-24

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
