MGR-DHK Series Electrical Motor Controller

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact]


MGR-DHK Series DC Reversible Electrical Motor Rotation Controller is a DC to DC solid state relay.  As a DC reversible motor controller, MGR-DHK Series uses DC control signal to control the direction of the DC FWD/REV Bi-directional Electrical Motor.

How to order

How to order MGR-DHK Series Electrical Motor Controller

MGR-DHK (DC Bi-directional Electrical Motor Rotation Controller)
  - [Rated Current]
  - [Load Voltage] {200 (200VDC)}

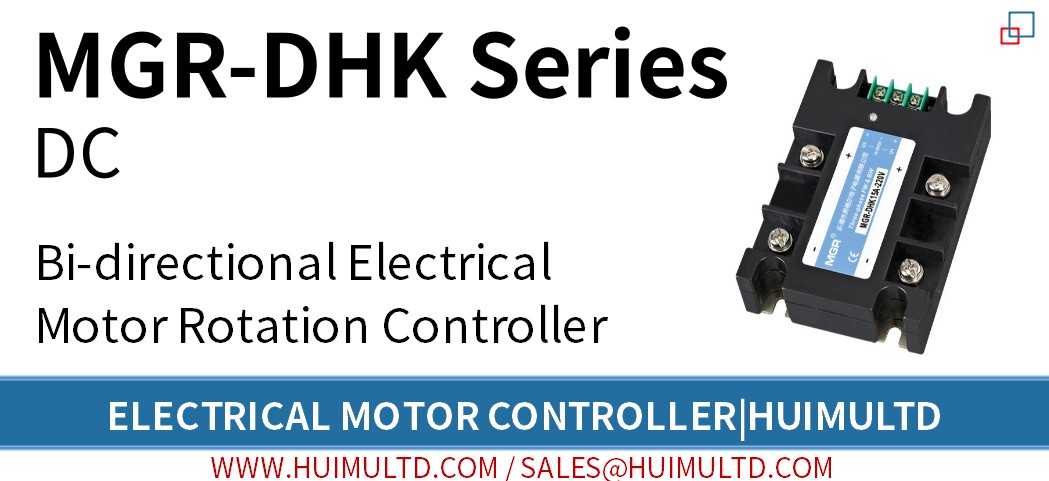

MGR-DHK Series img

MGR-DHK Series

Control Voltage:  10-32VDC (such as 12VDC, 13.8VDC, 15VDC, 18VDC, 24VDC, 27VDC, 28VDC, 30VDC or customized control voltage)
Load Voltage:  200VDC
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  105mm*75mm*33mm; Panel mount solid state relay with metal base and screw terminals


● Low-impedance MOSFET as the output component minimize the total power consumption
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Two color (Red & Green) LED output status
● Built-in forward/reverse interlock protection function

Dimensions and Circuit Wiring Diagram

MGR-DHK Series Electrical Motor Controller

MGR-DHK Series Electrical Motor Controller Diagram


● DC Bi-Directional Electrical Motor

Precautions and FAQs

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.

All Regular Models We Offer

● MGR-DHK Series (DC Revisable Motor Rotation Controller)

Load voltage 200VDC

*Customized models are available, be free to contact us.
