TAG: MAGER MGR-AH12 SERIES / SOLID STATE RELAY / AC TO AC (AC INPUT AC OUPUT) / INDUSTRIAL / SINGLE PHASE / ZERO CROSSING / HIGH LOAD VOLTAGE / HIGH LOAD CURRENT
Control Voltage: 85~265VAC (such as 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: Single phase 30~1200VAC (such as 48VAC, 110VAC, 240VAC, 265VAC, 400VAC, 460VAC, 1200VAC or customized voltage)
Load Current: 400A, 500A

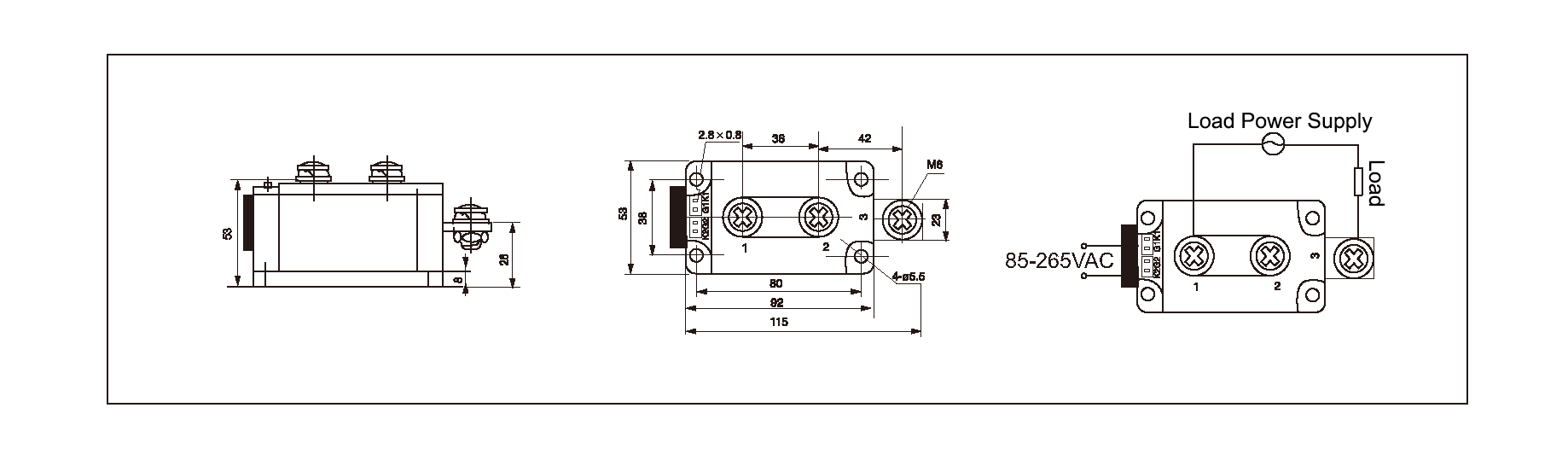

Dimensions & Mounting: 115mm*53mm*53mm; Panel mount solid state relay with metal base and screw terminals

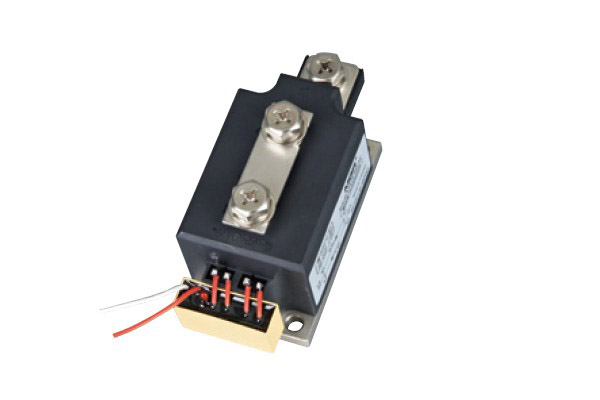

INDUSTRIAL SINGLE PHASE AC-AC SOLID STATE RELAY
MGR - A: [Control voltage 85-265VAC] -H: [Long strip] - 12: [Control voltage 30-1200VAC] -400: [400A] -Z: [Zero-crossing type]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
