TAG: MAGER MGR-H3 SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / INDUSTRIAL / SINGLE PHASE / ZERO CROSSING
Control Voltage: 4~32VDC (such as 4VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: Single phase 30~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current: 40A, 60A, 80A, 100A, 120A, 125A
Dimensions & Mounting: 94mm*34mm*42mm; Panel mount solid state relay with metal base and screw terminals

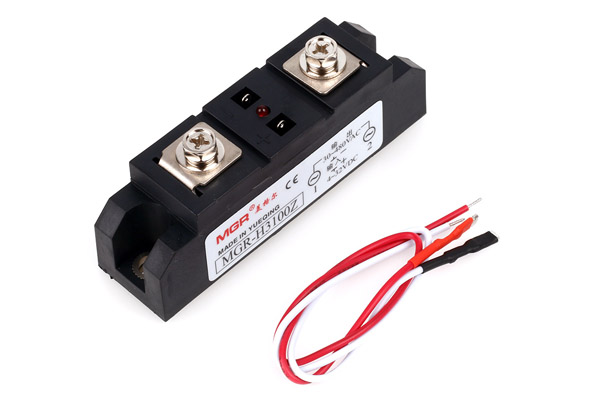

INDUSTRIAL SINGLE PHASE DC-AC SOLID STATE RELAY
MGR - H:[Long strip] - 3:[Load voltage 30-480VAC] -100:[100A] - Z:[Zero-crossing type]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
