TAG: MAGER MGR-1D SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / SINGLE PHASE / RANDOM CROSS
Control Voltage: 4~8VDC (such as 4.2VDC, 4.5VDC, 5VDC, 6VDC, 8VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current: 10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 120A, 150A
Dimensions & Mounting: 57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals

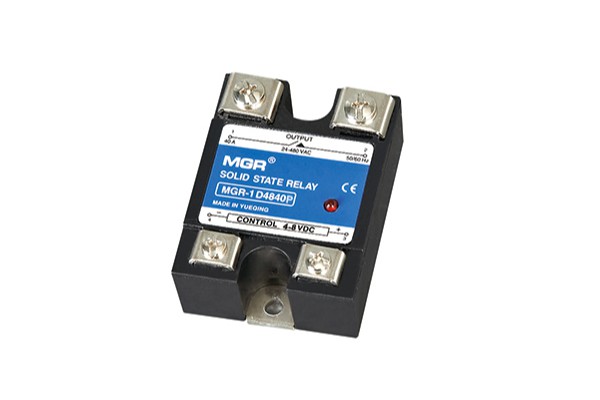

SINGLE PHASE RANDOM CONDUCTION DC-AC SOLID STATE RELAY
MGR - 1:[Single phase] - D:[Control voltage 4-8VDC] - 48:[Load voltage 24-480VAC] -40:[40A] -P:[RANDOM CONDUCTION TYPE]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
