TAG: MAGER MGR-1D SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / SINGLE PHASE / HIGH LOAD VOLTAGE
Control Voltage: 3~32VDC (such as 3VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: Single phase 24~690VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC, 690VAC or customized voltage)
Load Current: 10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 120A, 150A

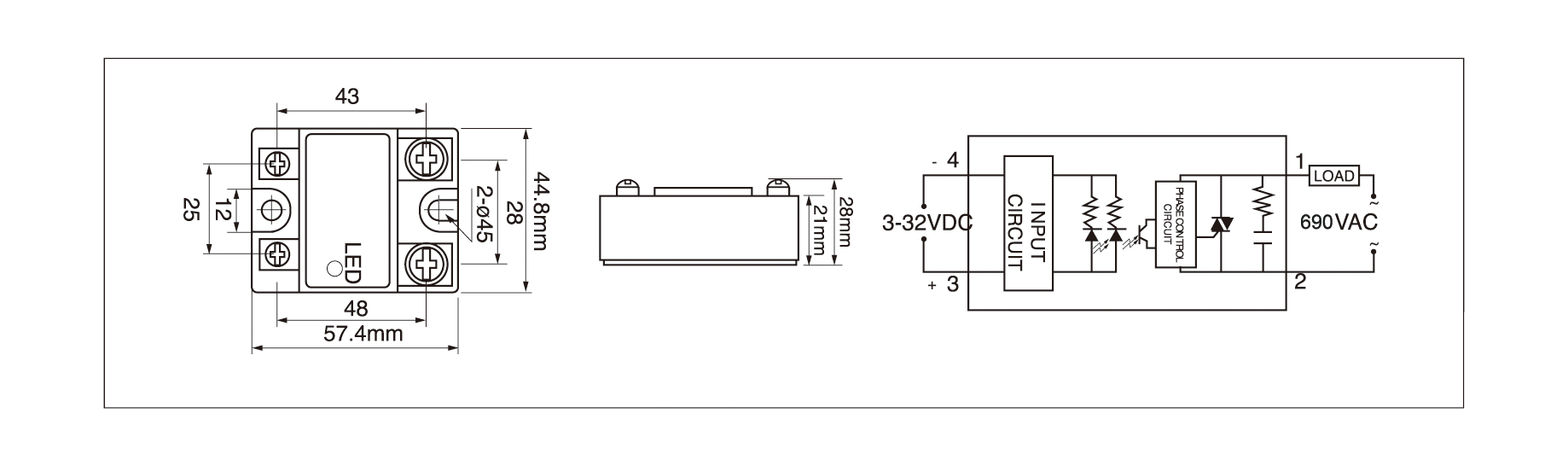

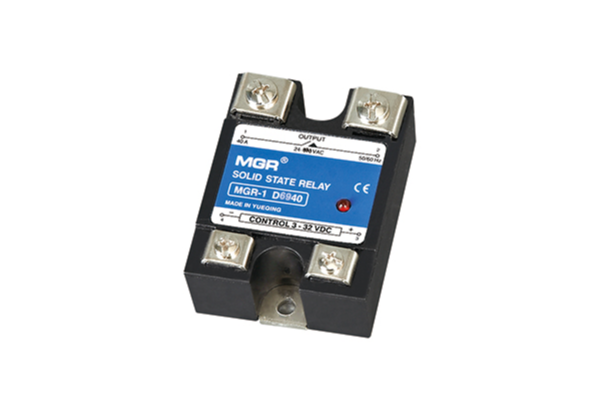

Dimensions & Mounting: 57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals
SINGLE PHASE DC-AC SOLID STATE RELAY
MGR - 1:[Single phase] - D: [Control voltage 3-32VDC] - 69 : [Load voltage 690VAC] - 40 : [40A]
● Rated current: 40Amps
● Rated voltage: 690VAC
● TRAIC as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Availed with zero-crossing conduction (resistive load) or random conduction (inductive load or phase control)
● Display output status via LED
● Standard output RC snubber circuit
● Transparent cover for extra protection
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
