STANDARD RECTIFIER MODULE │HUIMULTD
  • STANDARD RECTIFIER MODULE │HUIMULTD
  • MDC-160A-16 │HUIMULTD
  • MDC-300A-16 │HUIMULTD
Product name：STANDARD RECTIFIER MODULE

Product overview:

TAG:  MAGER MDC, MDA, MDK, MDX SERIES / SOLID STATE MODULE / RECTIFIER
Load Current:  25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions & Mounting:  Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Content us Return list Download PDF

Product introduction



STANDARD RECTIFIER MODULE

(MDC, MDA, MDK, MDX)

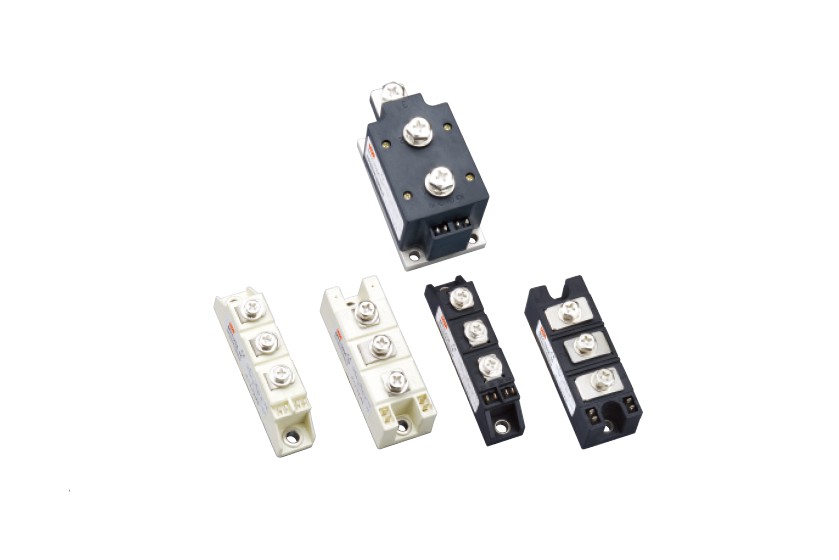

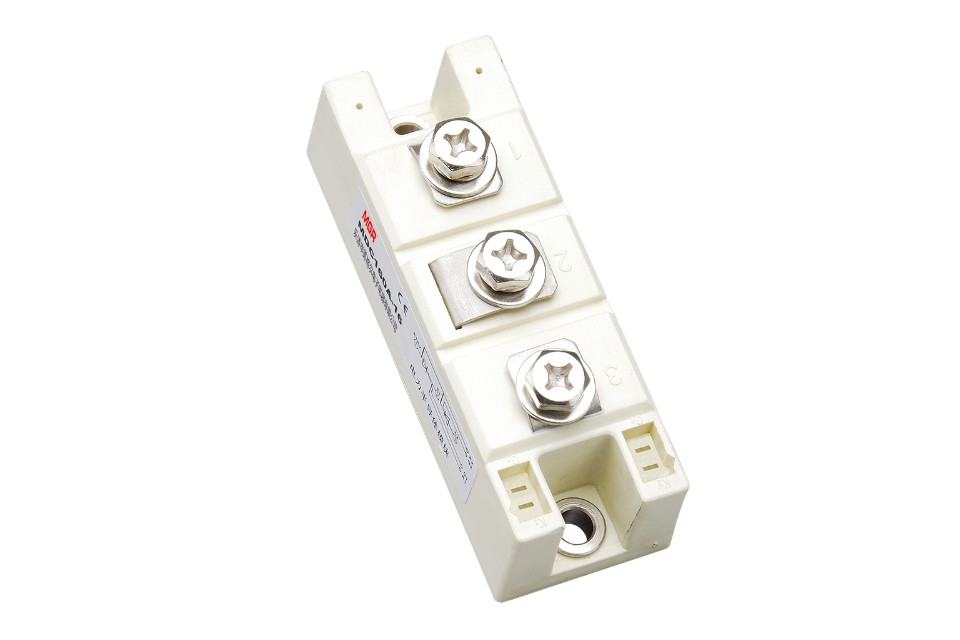

Product Image - MDC, MDA, MDK, MDX series

Features
● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Crimp style structure, excellent thermal cycling and power cycle capability
● If the current is below 350A, the module is cooled by forced air cooling; if the current is more than 400A, the cooling method can be either air-cooling or water-cooling.
● Easy to install, easy to apply and maintain
● Compact dimensions and low weight

Product description
● VDSM/VRSM=VDRM/VRRM+200V
● Unless otherwise stated, IGT, VGT, IH, VTM, and VISO are all tested at 25 °C, and other parameters in the table are tested at Tjm.
● I2t=I2TSM×tw/2; In the formula, tw=half period of sinusoidal current. If the frequency is 50Hz, I2t=0.005I2TSM (Amps2 sec)

Typical application
● Control system of AC and DC motor
● Various rectification power supplies
● Industrial heating control system
● Lighting system
● Contactless switch
● Motor soft start
● Static var compensator
● Welding machine
● Frequency converter
● UPS power supply
● Battery charging and discharging

Module model and circuit diagram

Circuit diagram - mager MDC, MDA, MDK, MDX series standard rectifier module


Product Specifications

ModelAverage On-state CurrentMaximum Repetitive Peak Off-state and Reverse VoltageMaximum Peak On-state Voltage and CurrentMaximum Repetitive Peak Off-state and Reverse CurrentRMS Forward CurrentMaximum Junction TemperatureIsolation VoltageOverall Dimensions
IT(AV)VDRM, VRRMVTMITMIDRM, IRRMIF(RMS)TjmVisol
AVVAmAA℃V(AC)
MDx 25A25400-26001.5808411252500101F
MDx 55A55400-26001.51708861252500101F
MDx 70A70400-26001.527081101252500201F
MDx 90A90400-26001.527081411252500201F
MDx 110A110400-26001.533081731252500301F
MDx 130A130400-26001.5410122121252500301F
MDx 160A160400-26001.5480122511252500301F
MDx 200A200400-26001.5600123141252500401F-1
MDx 250A250400-26001.5750203931252500401F-1
MDx 300A300400-26001.5900204711252500401F-1
MDx 400A400400-26001.651000406401252500401F
MDx 500A500400-26001.651500407851252500401F
MDx 800A800400-26001.652400407851252500501F
MDx 1000A1000400-26001.653000407851252500701F
MDx 500A*500400-26001.651500407851252500801F
MDx 800A*800400-26001.6524004012561252500901F

Note: *
In the model column, MDx represents any one series of MDC, MDK, MDA, MDX, and MD.
The domestic models corresponding to the imported models RM, SKKD, DD, MDD, 2RL, 100L, etc., are subject to the circuit diagram.
