Product name:MGR-HVR120A

Product overview:

TAG:  MAGER MGR-HVR SERIES / SOLID STATE RELAY / SINGLE PHASE / VOLTAGE REGULATOR
Control Method:  Manual Control--Adjustable Potentiometer (470K,680K,820K)
Load Voltage:  0~480VAC (such as 24VAC, 36VAC, 48VAC, 110VAC/120VAC, 220VAC/230VAC, 480VAC or customized voltage )
Load Current:  60A, 80A, 100A, 120A, 125A
Dimensions & Mounting:  94mm*25mm*42mm; Panel mount solid state relay with metal base and screw terminals

Content us Return list Download PDF

Product introduction



MGR-HVR120A

SINGLE PHASE AC SOLID STATE VOLTAGE REGULATOR (POTENTIOMETER TYPE)

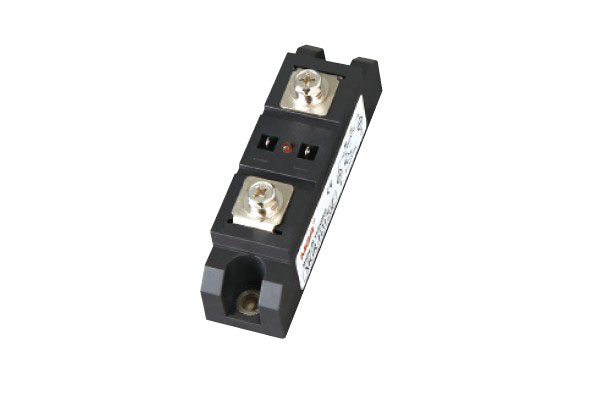

Product Image - MGR HVR120A

Type meaning

MGR - H:[Long strip] -VR[Potentiometer(470K/680K/820K)] -120A:[120A]


Features
● Rated current: 120Amps
● Rated voltage: 0-480VAC
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Fully compatible with different control methods, allowing the computer to easily adjust voltage through the network

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.


Dimension and circuit diagram - MGR HVR series

Attention: Terminals of the potentiometer is charged!


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
