Product name:BRIDGE RECTIFIER

Product overview:

TAG:  MAGER KBPC, QL, SQL SERIES / SOLID STATE MODULE /SINGLE PHASE / THREE PHASE / RECTIFIER / FULL WAVE
Load Voltage:  Single phase or three phase, 100~1600VAC
Load Current:  5~35A, 40A, 50A, 60A, 100A, 150A, 200A, 250A
Dimensions & Mounting:  See specification table below

Content us Return list Download PDF

Product introduction



BRIDGE RECTIFIER

(KBPC, QL, SQL)

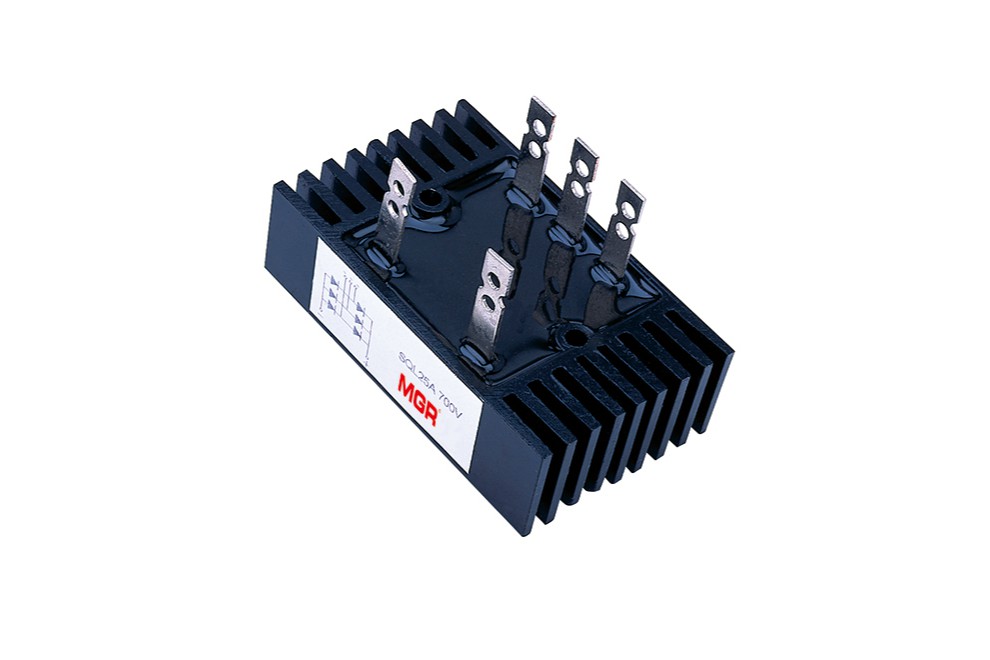

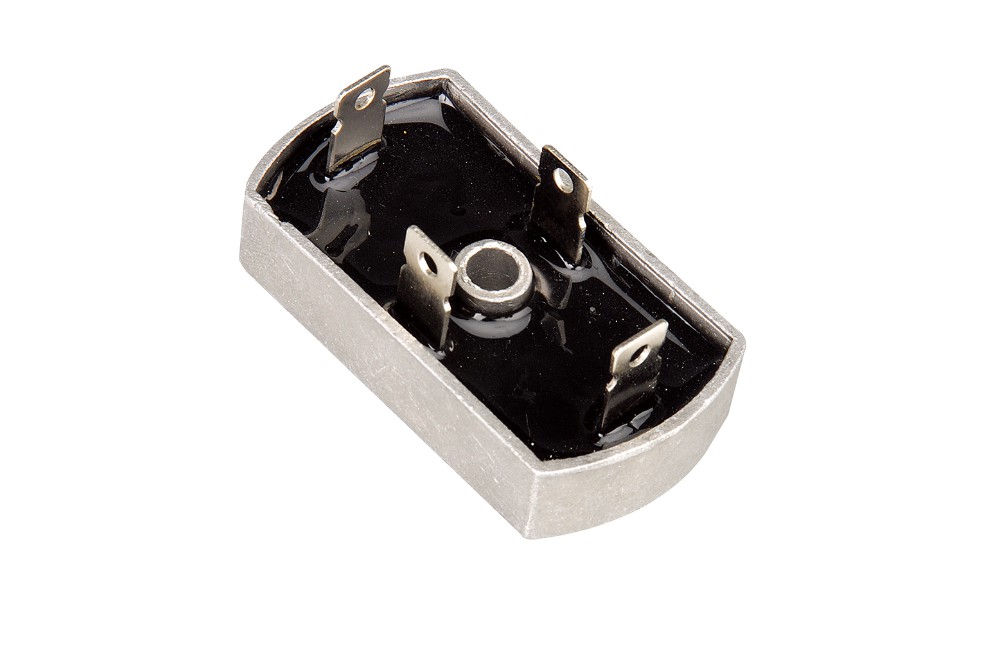

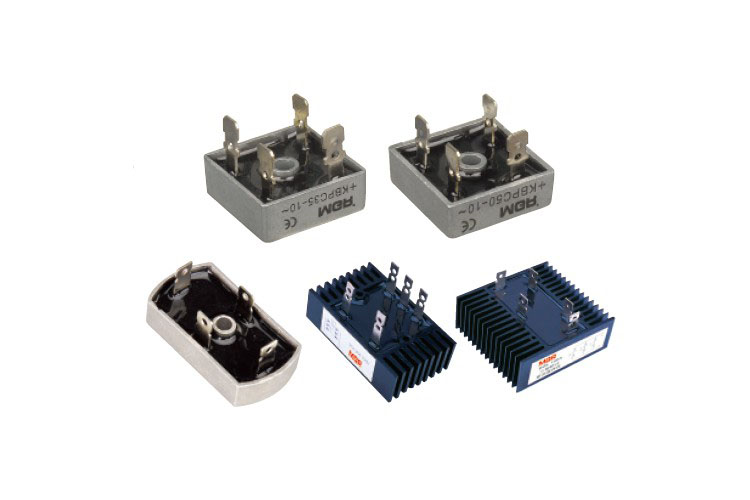

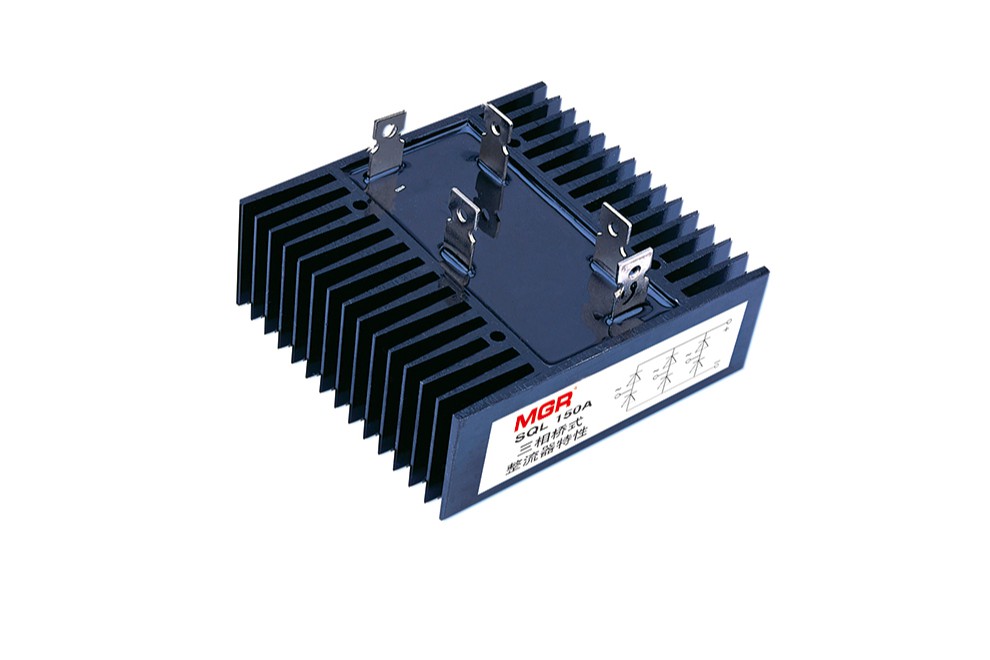

Product Image - KBPC,QL,SQL series bridge rectifiers

Type meaning

KBPC:[MGR bridge rectifier KBPC, QL=single phase bridge, SQL=three phase bridge] - 35:[DC output current value] - 06:[Maximum repetitive peak reverse voltage VRRM= Voltage code value *100 times]

Features
● Current: 5-250A
● Voltage: 100-1600V
● Universal small size, “vacuum + hydrogenation protection” welding technology
● Glass passivated diode chip
● Excellent power/volume ratio
● Conductivity package with high thermal resistance

Typical application
● Rectifier power supply
● Industrial automation control system
CNC machine
Remote control system

Overall dimensions

Dimensions - mager KBPC,QL,SQL series bridge rectifiers


Product Specifications

Single phase bridge rectifier specifications
ModelDC Output CurrentAverage Forward Input CurrentMaximum Repetitive Peak Reverse VoltageMaximum Repetitive Peak Reverse CurrentIsolation VoltageOverall Dimensions
IdIF(AV)VRRMIRRMVisol
AAVmAV
KBPC 5A-35A5-352.5-17.5100-16005250028*28*22
KBPC 50A502.5-25100-16005250032*32*24
QL 5A-50A(Oval)5-502.5-25100-16005250032*60*25
QL 40A4020100-16007250060*100*55
QL 60A6030100-16007250060*100*55
QL 100A10050100-16007250060*100*55
QL 150A15075100-1600102500132*145*75
QL 200A200100100-1600102500132*145*75
QL 250A250125100-1600102500132*145*75
Three phase bridge rectifier specifications
ModelDC Output CurrentAverage Forward Input CurrentMaximum Repetitive Peak Reverse VoltageMaximum Repetitive Peak Reverse CurrentIsolation VoltageOverall Dimensions
IdIF(AV)VRRMIRRMVisol
AAVmAV
SQL 40A4014100-16007250060*100*55
SQL 60A6020100-16007250060*100*55
SQL 100A10034100-16007250060*100*55
SQL 150A15050100-1600102500132*145*75
SQL 200A20067100-1600102500132*145*75
SQL 250A25084100-1600102500132*145*75
SQL 50-10502.5-25100-16005250032*60*25

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
