JGX Series
PCB Mount Solid State Relay
[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]
Introduction
JGX series PCB Mount Solid State Relay uses the standard DIP-4 (Double In-line Package 4 pins) configuration, and can be divided into JGX_F series DC to AC PCB mount solid state relay, JGX_FA series DC to DC PCB mount solid state relay. The JGX series is available in three housings: Plastic Housing (1A, 3A, 5A), Metal Housing (3A, 5A), Heatsink Fins Housing (5A, 8A). The integrated heatsink fins housing is also known as the cast aluminum-zinc alloy housing, which has significant heat dissipation ability and can be applied to devices that require a large output power.

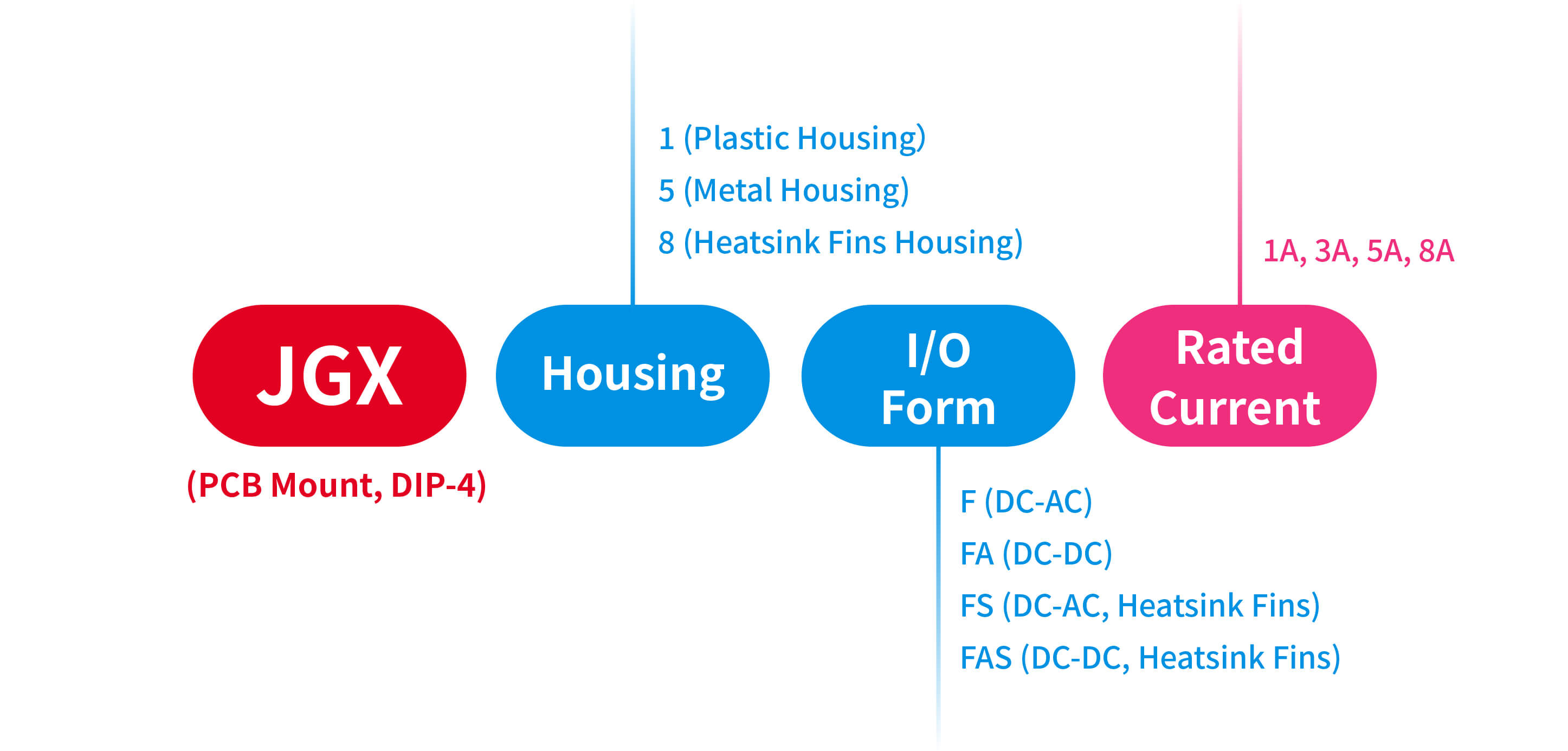

How to order
JGX (PCB Mount, DIP-4)
- [Housing] {1 (Plastic Housing); 5 (Metal Housing); 8 (Heatsink Fins Housing)}
- [Input-Output] {F (DC-AC); FA (DC-DC); FS (DC-AC, Heatsink Fins); FAS (DC-DC, Heatsink Fins)}
- [Rated Current]Parameters

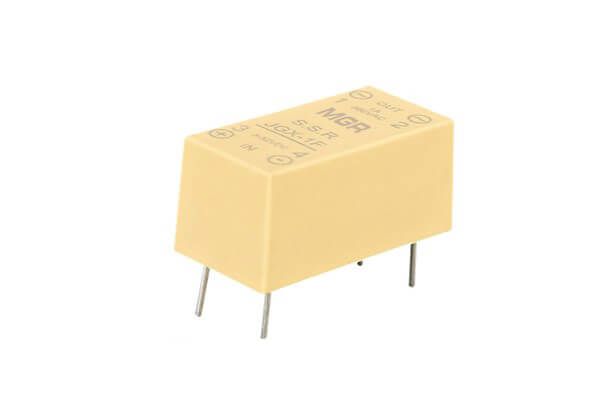

JGX-1F Series (Plastic Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 32mm*15mm*16mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and DIP 4-pin package

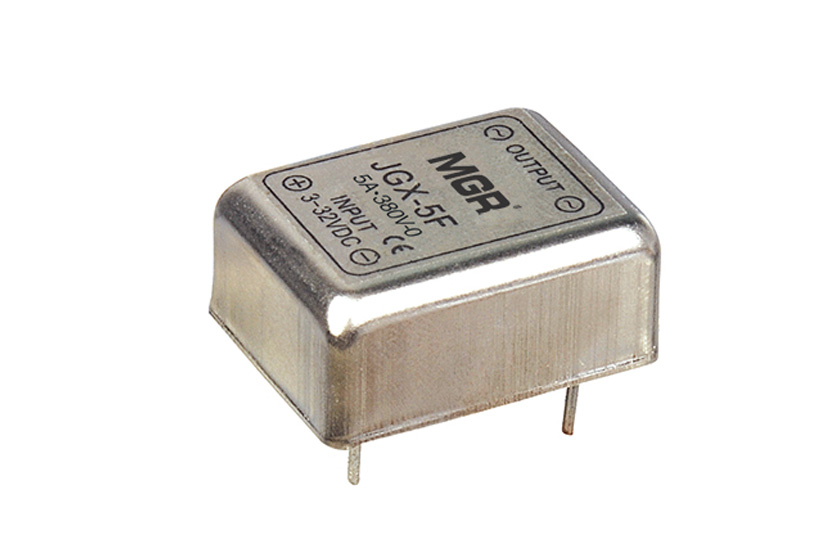

JGX-5F Series (Metal Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 3A, 5A
Dimensions & Mounting: 32mm*25mm*14mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions, and DIP 4-pin package
JGX-8FS Series (Heatsink FIns Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 5A, 8A
Dimensions & Mounting: 43mm*30mm*20mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions with heat sink, and DIP 4-pin package
JGX-1FA Series (Plastic Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 33mm*15mm*16mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and DIP 4-pin package
JGX-5FA Series (Metal Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 3A, 5A
Dimensions & Mounting: 33mm*25mm*14mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions, and DIP 4-pin package
JGX-8FAS Series (Heatsink Fins Housing)
Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 5A, 8A
Dimensions & Mounting: 43mm*30mm*20mm; PCB mount solid state relay with metal housing, British standard PCB mounting dimensions with integrated heat sink, and DIP 4-pin packageFeatures
JGX_F Series
● DIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● British standard PCB mounting dimensionsJGX_FA Series
● DIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Low-impedance MOSFET as the output component minimize the total power consumption
● British standard PCB mounting dimensionsDimensions and Circuit Wiring Diagram
JGX_F Series PCB Mount Solid State Relay
JGX-1F Series (Plastic Housing)
JGX-5F Series (Metal Housing)
JGX-8FS Series (Heatsink FIns Housing)
JGX_FA Series PCB Mount Solid State Relay
JGX-1FA Series (Plastic Housing)
JGX-5FA Series (Metal Housing)
JGX-8FAS Series (Heatsink FIns Housing)
Application
● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to air conditioners, balers, household appliances, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.
● High power density, low mounting density (limited installation space), no additional heat sink required.Precautions and FAQs
● What are the differences between Panel mount SSR and PCB mount SSR? The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.
All Regular Models We Offer
● JGX_F Series (DIP-4, DC to AC)
JGX-1F Series (Plastic Housing)
JGX-5F Series (Metal Housing)
- JGX-5F(3A)
- JGX-5F(5A)
JGX-8FS Series (Heatsink FIns Housing)
- JGX-8FS(5A)
- JGX-8FS(8A)
● JGX_FA Series (DIP-4, DC to DC)
JGX-1FA Series (Plastic Housing)
- JGX-1FA(1A)
- JGX-1FA(3A)
- JGX-1FA(5A)
JGX-5FA Series (Metal Housing)
- JGX-5FA(3A)
- JGX-5FA(5A)
JGX-8FAS Series (Heatsink FIns Housing)
- JGX-8FAS(5A)
- JGX-8FAS(8A)
*Customized models are available, be free to contact us.
Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
