Product name：JGX-5F

Product overview:

TAG: MAGER JGX (F) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / PCB / SINGLE PHASE
Control Voltage: 3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 3A, 5A
Dimensions & Mounting: 32mm*25mm*14mm; PCB mount solid state relay with metal housing; British standard PCB mounting dimensions, and DIP 4-pin package

Content us Return list Download PDF

Product introduction

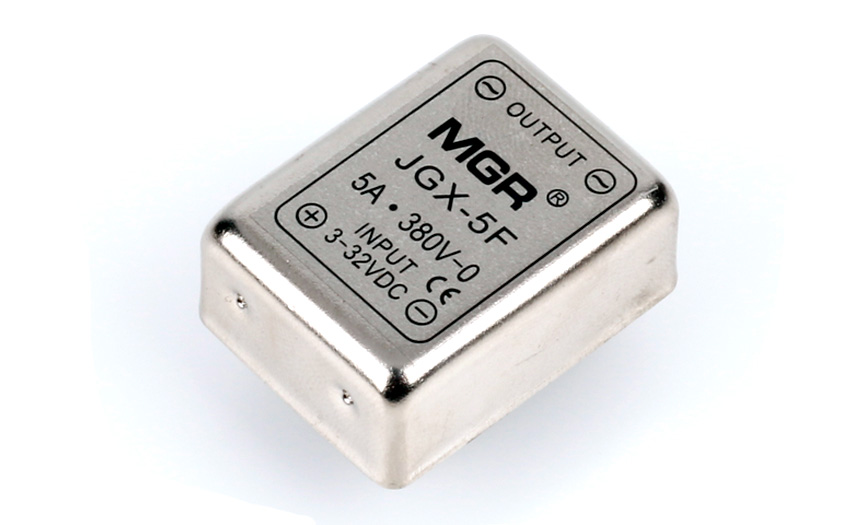

JGX-5F

PCB DC-AC SOLID STATE RELAY

Type meaning: JGX - 5:[5A] - F:[DC-AC (DC input-AC output)]
Features: ● Rated current: 5Amps; ● Rated voltage: 220V/380VAC; ● Control voltage: 3-32VDC; ● Control current: ≤10mA; ● DIP 4-pin package; ● "Ultra low" input current; ● Low output off-state leakage current; ● Low output on-state voltage drop; ● Standard output RC snubber circuit; ● Metal housing with significant heat dissipation; ● British standard PCB mounting dimensions
Application: ● Normally used in air conditioners, balers and other household appliances.

Dimension and circuit diagram - JGX (F) series

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
