Product name:JGX-1FA

Product overview:

TAG:  MAGER JGX (FA) SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / PCB
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  5~220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current:  1A, 3A, 5A
Dimensions & Mounting:  33mm*17mm*17mm; PCB mount solid state relay with plastic housing; British standard PCB mounting dimensions, and DIP 4-pin package

Content us Return list Download PDF

Product introduction



JGX-1FA

PCB DC-DC SOLID STATE RELAY

Product Image - JGX 1FA

Type meaning

JGX - 1:[1A] - FA:[DC-DC (DC input-DC output)]


Features
● Rated current: 1Amps
● Rated voltage: 5-220VDC
● Control voltage: 3-32VDC
● Control current: ≤10mA
● DIP 4-pin package
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Low-impedance MOSFET as the output component minimize the total power consumption
● British standard PCB mounting dimensions

Application

● Normally used in air conditioners, balers and other household appliances.

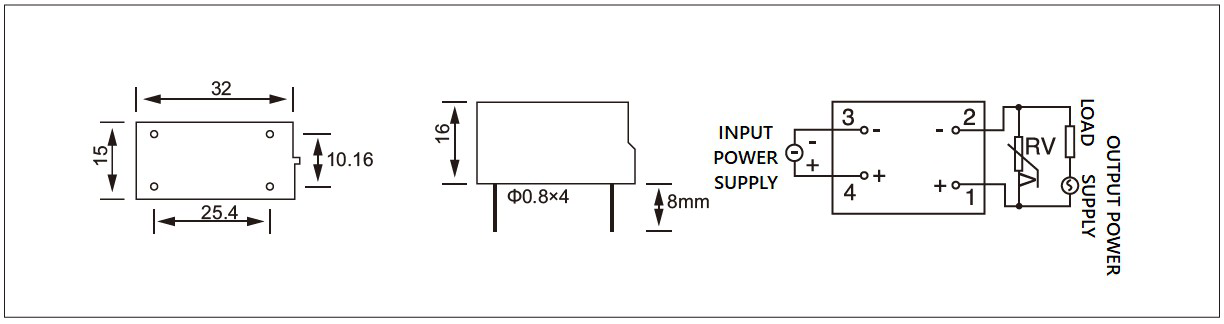

Dimension and circuit diagram - JGX (FA) series
