TAG: MAGER MGR-1DD SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / ONE CHANNEL
Control Voltage: 3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Low input current, ≤40mA
Load Voltage: One channel, 5~220VDC (such as 5VDC, 12VDC, 24VDC, 36VDC, 72VDC, 84VDC, 96VDC, 120VDC, 160VDC, 220VDC or customized voltage)
Load Current: 10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A

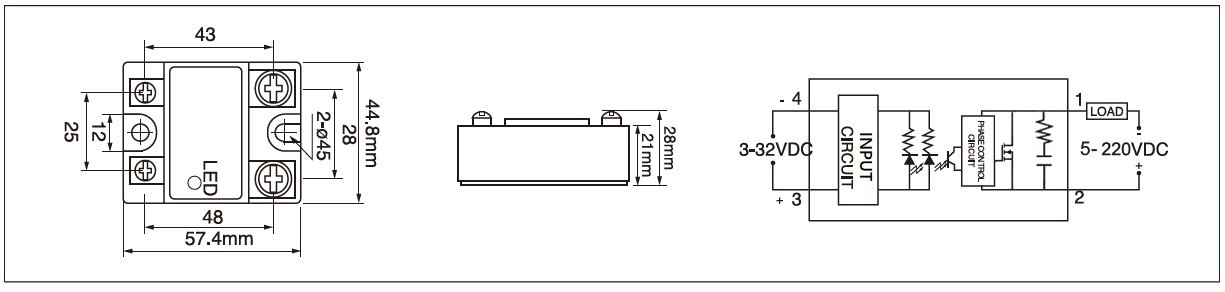

Dimensions & Mounting: 57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals
DC-DC SOLID STATE RELAY
MGR - 1:[One channel] - DD:[DC-DC (DC input-DC output), Control voltage 3-32VDC] - 220:[Load voltage 5-220VDC] -40:[40A]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
