Product name:MGR-1AD12-25

Product overview:

TAG:  MAGER MGR-1AD SERIES / SOLID STATE RELAY / AC TO DC (AC INPUT DC OUPUT) / ONE CHANNEL
Control Voltage:  70-280VAC (such as 85VAC, 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  One channel, 5-120VDC ((such as 5VDC, 12VDC, 24VDC, 36VDC, 72VDC, 84VDC, 96VDC, 120VDC or customized voltage)
Load Current:  10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 120A, 150A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals

Content us Return list Download PDF

Product introduction

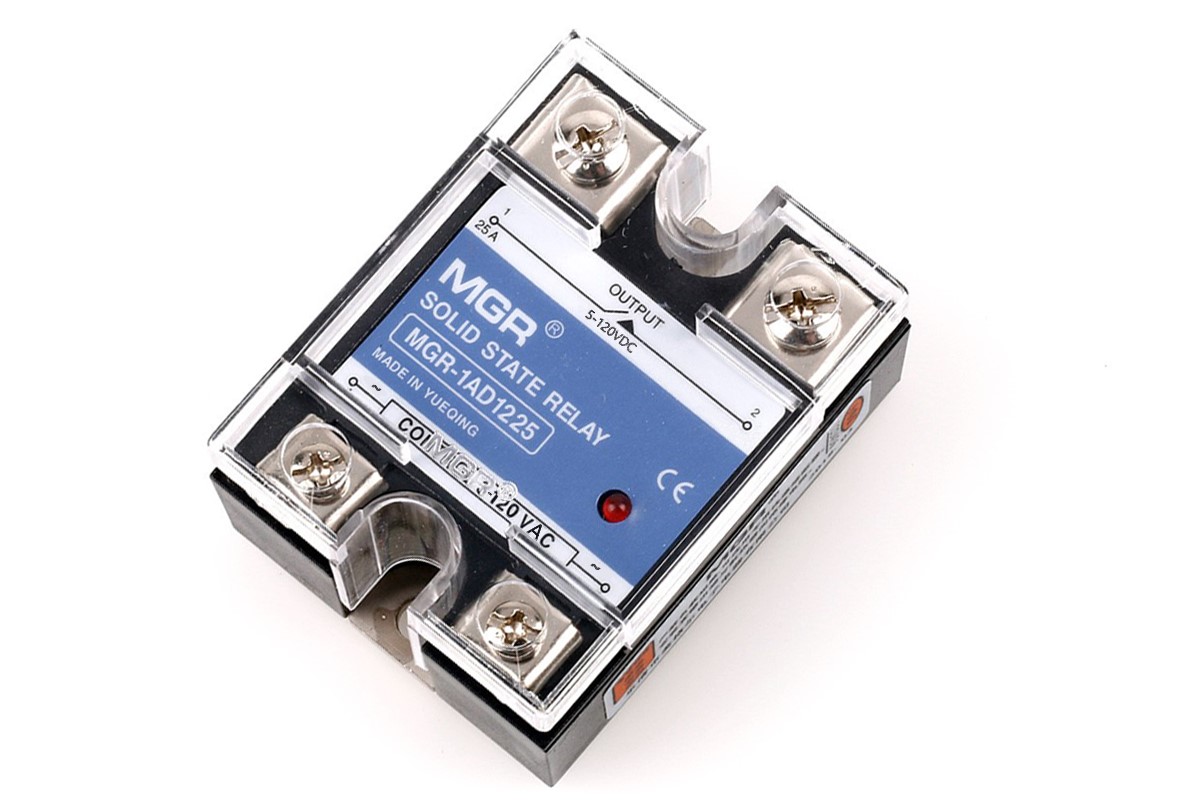

Product Image - MGR 1AD1225MGR-1AD12-25

AC-DC SOLID STATE RELAY


Type meaning

MGR - 1:[One channel] - AD: [AC-DC (AC input-DC output), Control voltage 70-280VAC] - 12 : [Load voltage 5-120VDC] - 25 : [25A]


Features
● Rated current: 25Amps
● Rated voltage: 5-120VDC
● Control voltage: 70-280VAC
● Control current: ≤10mA
● Low output off-state leakage current
● Low-impedance MOSFET as the output component minimize the total power consumption
● Suitable for resistive load and inductive load (the inductive load, such as motor and EMR /electromagnetic coil, must be equipped with the suppressor diode)
● Display output status via LED
● Standard output RC snubber circuit
● Transparent cover for extra protection

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.


Dimension and circuit diagram - MGR 1AD12 series

Note: Specific voltage can be customized.

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
