Product name:WELDING MACHINE RECTIFIER MODULE

Product overview:

TAG:  MAGER MTG, MTY, MDG, MDY, MFG, MFY SERIES / SOLID STATE MODULE / RECTIFIER / WELDING MACHINE
Load Current:  70A, 110A, 160A, 200A, 250A, 300A
Dimensions & Mounting:  Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Content us Return list Download PDF

Product introduction



WELDING MACHINE RECTIFIER MODULE

(MTG, MTY, MDG, MDY, MFG, MFY)

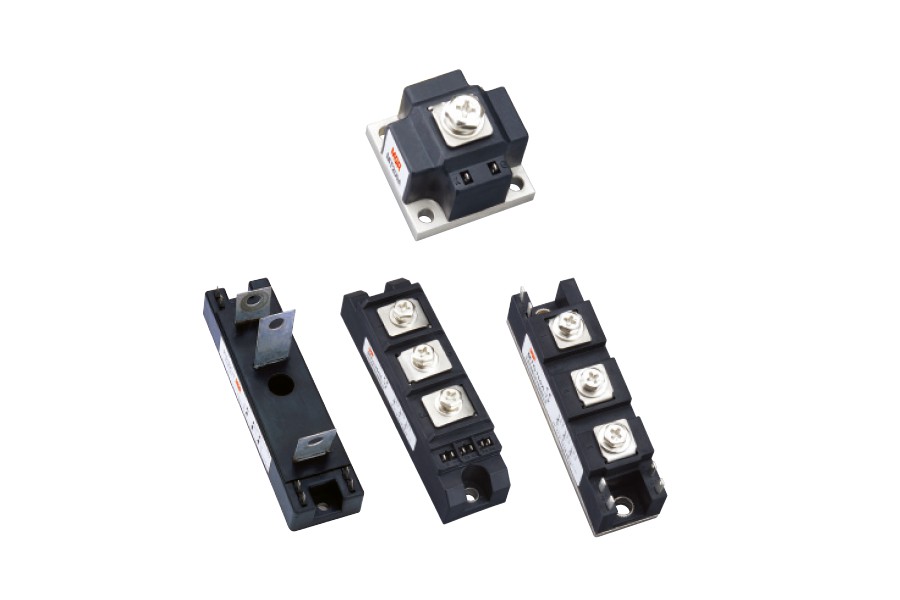

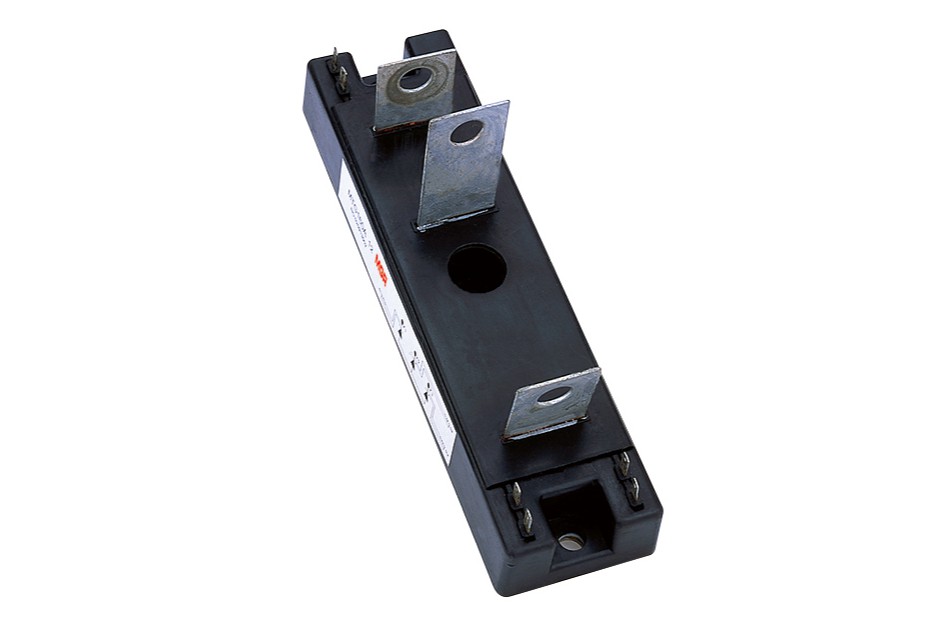

Product Image - MTG, MTY, MDG, MDY, MFG, MFY series welding machine module

Features
● The transistor is not insulated from the backplane, and the backplane is a common electrode
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Low forward voltage drop
● Maximum operating junction temperature up to 140 ℃
● High surge current
● Crimp style structure, excellent thermal cycling and power cycle capability

Typical application
● Welding machine power supply
● Various DC power supplies
● Frequency converter

Module model and circuit diagram

Circuit diagram - mager MTG, MTY, MDG, MDY, MFG, MFY series welding machine module


Product Specifications

NON-INSULATED THYRISTOR / RECTIFIER HYBRID MODULE
ModelAverage On-state CurrentMaximum Repetitive Peak Off-state and Reverse VoltageMaximum Repetitive Peak Off-state and Reverse CurrentMaximum Peak On-state Voltage and CurrentGate Trigger CurrentGate Trigger VoltageHolding CurrentRate Of Rise Of Off-state VoltageRate Of Rise Of On-state CurrentMaximum Junction TemperatureOverall Dimensions
IT(AV)VDRM, VRRMIDRM, IRRMVTMITMIGTVGTIHdv/dtdi/dtTjm
AVmAVAmAVmAV/μsA/μs
MTx 70A70400-2600121.672101002.5100800100125103B, 102B, 101B
MTx 110A110400-2600121.673301002.5100800100125103B, 102B, 101B
MTx 160A160400-2600121.674801002.5100800100125103B, 102B, 101B
MTx 200A200400-2600201.706001502.5100800100125104B
MTx 250A250400-2600201.707501502.5100800100125104B
MTx 300A300400-2600251.709001502.5100800100125104B
NON-INSULATED RECTIFIER MODULE



ModelAverage Forward CurrentMaximum Repetitive Peak Reverse VoltageMaximum Repetitive Peak Reverse CurrentMaximum Peak On-state Voltage and CurrentRMS Forward CurrentMaximum Junction TemperatureOverall Dimensions



IF(AV) VRRMIRRMVTMITMIF(RMS)Tjm



AVmAVAA



MDx 70A70400-2600121.57210157150201F, 101B



MDx 110A110400-2600121.57330157150201F, 101B



MDx 160A160400-2600121.57480236150103B, 102B, 101B



MDx 200A200400-2600201.60600314150104B



MDx 250A250400-2600201.60750393150104B



MDx 300A300400-2600251.60900471150104B



Note: The MTx, MDx in the model column indicates any one series of MTG, MTY, MDG, MDY, MFG and MFY.


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
