Product name:STANDARD THYRISTOR MODULE

Product overview:

TAG:  MAGER MTC, MTA, MTK, MTX SERIES / SOLID STATE MODULE / THYRISTOR
Load Current:  25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions & Mounting:  Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Content us Return list Download PDF

Product introduction



STANDARD THYRISTOR MODULE

(MTC, MTA, MTK, MTX)

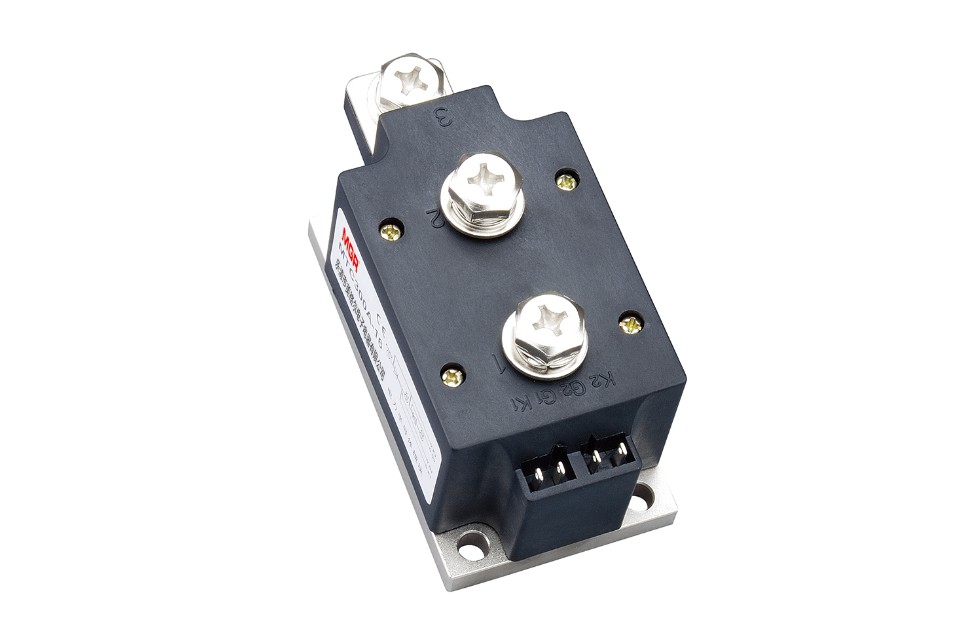

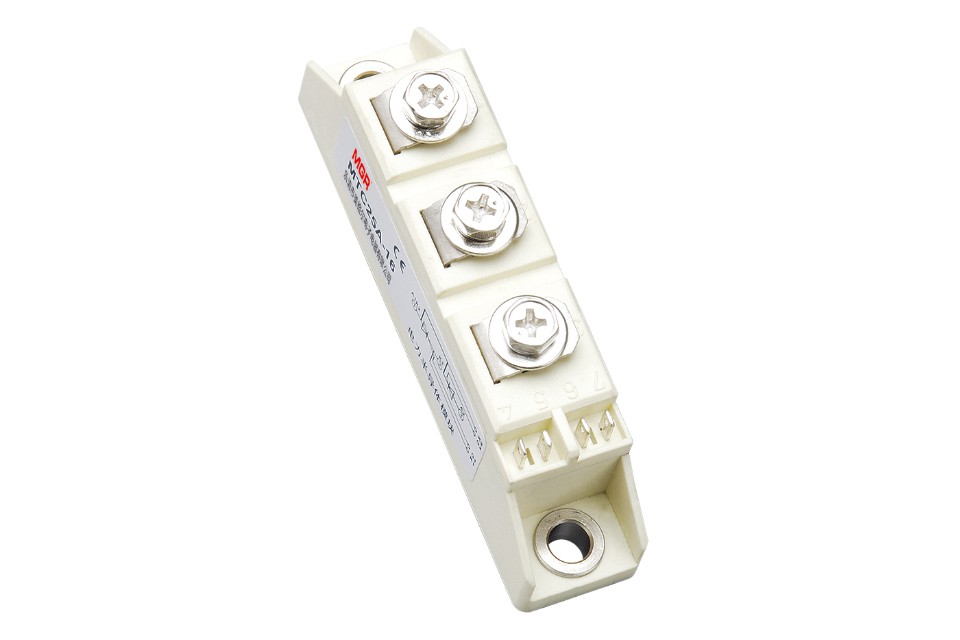

Product Image - MTC, MTA, MTK, MTX series

Features
● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Crimp style structure, excellent thermal cycling and power cycle capability
● If the current is below 350A, the module is cooled by forced air cooling; if the current is more than 400A, the cooling method can be either air-cooling or water-cooling.
● Easy to install, easy to apply and maintain
● Compact dimensions and low weight

Product description
● VDSM/VRSM=VDRM/VRRM+200V
● Unless otherwise stated, IGT, VGT, IH, VTM, and VISO are all tested at 25 °C, and other parameters in the table are tested at Tjm.
● I2t=I2TSM×tw/2; In the formula, tw=half period of sinusoidal current. If the frequency is 50Hz, I2t=0.005I2TSM (Amps2 sec)

Typical application
● Control system of AC and DC motor
● Various rectification power supplies
Industrial heating control system
Lighting system
● Contactless switch
● Motor soft start
● Static var compensator
● Welding machine
● Frequency converter
● UPS power supply
● Battery charging and discharging

Module model and circuit diagram

Circuit diagram - mager MTC, MTA, MTK, MTX series


Product Specifications

ModelAverage On-state CurrentMaximum Repetitive Peak Off-state and Reverse VoltageMaximum Peak On-state Voltage and CurrentMaximum Repetitive Peak Off-state and Reverse CurrentGate Trigger CurrentGate Trigger VoltageHolding CurrentRate Of Rise Of Off-state VoltageRate Of Rise Of On-state CurrentMaximum Junction TemperatureIsolation VoltageOverall Dimensions
IT(AV)VDRM, VRRMVTMITMIDRM, IRRMIGTVGTIHdv/dtdi/dtTjmVisol
AVVAmAmAVmAV/μsA/μsV(AC)
MTx 25A25400-26001.58081002.5100800501252500101F
MTx 55A55400-26001.58081002.5100800501252500101F
MTx 70A70400-26001.9170101002.5100800501252500201F
MTx 90A90400-26001.9270151002.51008001001252500201F
MTx 110A110400-26001.9330201002.51008001001252500201F
MTx 130A130400-26001.9410251502.51008001001252500301F
MTx 160A160400-26001.9480251502.51008001001252500301F
MTx 200A200400-26001.9600301802.51008001001252500401F
MTx 250A250400-26001.9750301802.51008001001252500401F
MTx 300A300400-26001.9900401802.51008001001252500401F
MTx 400A400400-26001.91050402003.01008001001252500501F
MTx 500A500400-26001.91500402003.01008001001252500501F
MTx 800A800400-26001.92400402003.01008001001252500701F
MTx 500A*500400-26001.91500402003.01008001001252500907F
MTx 800A*800400-26001.92400402003.01008001001252500111F
MTx 1000A*1000400-26001.93000402003.0100800100125250070F

Note: *
In the model table, MTx represents any one series of MTC, MTK, MTA, MTX, and MT.
The domestic models corresponding to the imported models PK, SKKT, IR, EMGE, TM, MSG, MCC, MTT, etc., are subject to the circuit diagram.


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
