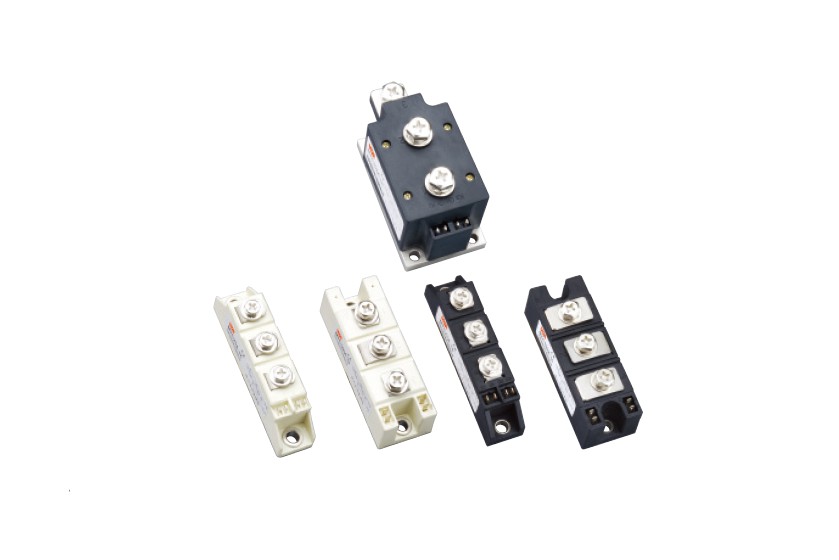

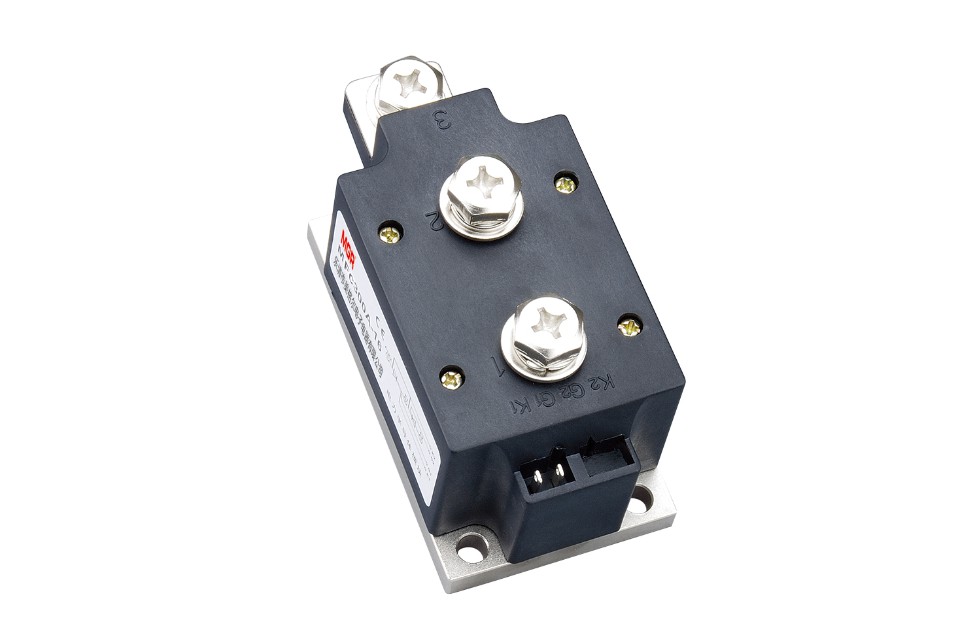

Features

---

● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC

● International standard package

● "Vacuum + hydrogenation protection" welding technology

● Crimp style structure, excellent thermal cycling and power cycle capability

● If the current is below 350A, the module is cooled by forced air cooling; if the current is more than 400A, the cooling method can be either air-cooling or water-cooling.

● Easy to install, easy to apply and maintain

● Compact dimensions and low weight

Product description

---

● V_DSM/V_RSM=V_DRM/V_RRM+200V

● Unless otherwise stated, I_GT, V_GT, I_H, V_TM, and V_ISO are all tested at 25 °C, and other parameters in the table are tested at T_jm.

● I²t=I²_TSM×t_w/2; In the formula, tw=half period of sinusoidal current. If the frequency is 50Hz, I²t=0.005I²_TSM (Amps² sec)

Typical application

---

● Control system of AC and DC motor

● Various rectification power supplies

● Industrial heating control system

● Lighting system

● Contactless switch

● Motor soft start

● Static var compensator

● Welding machine

● Frequency converter

● UPS power supply

● Battery charging and discharging

Module model and circuit diagram

---

Product Specifications

---

Model	Average On-state Current	Maximum Repetitive Peak Off-state and Reverse Voltage	Maximum Peak On-state Voltage and Current		Maximum Repetitive Peak Off-state and Reverse Current	Gate Trigger Current	Gate Trigger Voltage	Holding Current	Rate Of Rise Of Off-state Voltage	Rate Of Rise Of On-state Current	Maximum One-cycle Non-repetitive On-state and  Forward Surge  Current	Maximum Junction Temperature	Isolation Voltage	Overall Dimensions
	IT(AV)	VDRM, VRRM	VTM	ITM	IDRM, IRRM	IGT	VGT	IH	dv/dt	di/dt	ITSM, IFSM	Tjm	Visol
	A	V	V	A	mA	mA	V	mA	V/μs	A/μs	A*103	℃	V(AC)
MFx 25A	25	400-2600	1.69	80	8	100	2.5	100	800	50	0.55	125	2500	101F
MFx 55A	55	400-2600	1.69	170	8	100	2.5	100	800	50	1.25	125	2500	101F
MFx 70A	70	400-2600	1.9	170	10	100	2.5	100	800	50	1.60	125	2500	201F
MFx 90A	90	400-2600	1.9	270	15	100	2.5	100	800	100	2.00	125	2500	201F
MFx 110A	110	400-2600	1.9	330	20	100	2.5	100	800	100	2.40	125	2500	201F
MFx 130A	130	400-2600	1.9	410	25	150	2.5	100	800	100	3.80	125	2500	301F
MFx 160A	160	400-2600	1.9	480	25	150	2.5	100	800	100	5.40	125	2500	301F
MFx 200A	200	400-2600	1.9	600	30	180	2.5	100	800	100	7.20	125	2500	401F
MFx 250A	250	400-2600	1.9	750	30	180	2.5	100	800	100	8.50	125	2500	401F
MFx 300A	300	400-2600	1.9	900	40	180	2.5	100	800	100	9.30	125	2500	401F
MFx 400A	400	400-2600	1.9	1050	40	200	3.0	100	800	100	14.0	125	2500	501F
MFx 500A	500	400-2600	1.9	1500	40	200	3.0	100	800	100	16.0	125	2500	501F
MFx 800A	800	400-2600	1.9	2400	40	200	3.0	100	800	100	16.0	125	2500	701F
MFx 1000A	1000	400-2600	1.9	3000	40	200	3.0	100	800	100	16.0	125	2500	907F
MFx 500A*	500	400-2600	1.9	1500	40	200	3.0	100	800	100	11.0	125	2500	111F
MFx 800A*	800	400-2600	1.9	2400	40	200	3.0	100	800	100	16.0	125	2500	70F

Note: *
The MFx in the model column indicates any one series of MFC, MFK, MFA, and MFX.
The domestic models corresponding to the imported models TM, SKKH, PD, IR, PE, TD, etc., are subject to the circuit diagram.
