Product name:SINGLE PHASE OR THREE PHASE BRIDGE RECTIFIER MODULE

Product overview:

TAG:  MAGER MDQ, MDS SERIES / SOLID STATE MODULE / SINGLE PHASE / THREE PHASE / RECTIFIER / FULL WAVE
Load Current:  30A, 60A, 100A, 150A, 200A, 300A, 400A, 500A, 600A
Dimensions & Mounting:  Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Content us Return list Download PDF

Product introduction



SINGLE PHASE / THREE PHASE BRIDGE RECTIFIER MODULE

(MDQ, MDS)

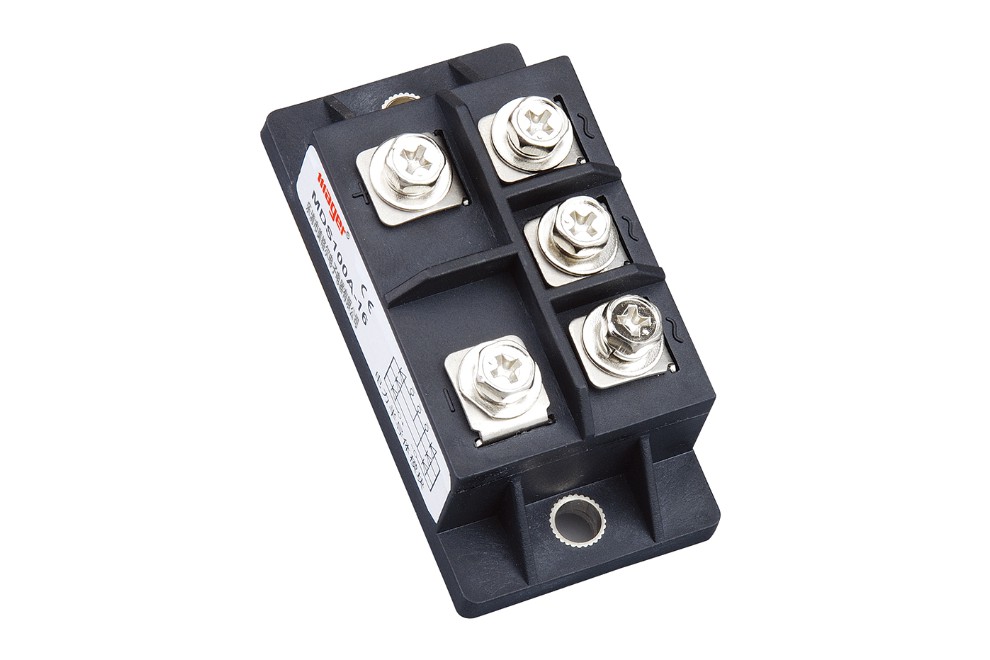

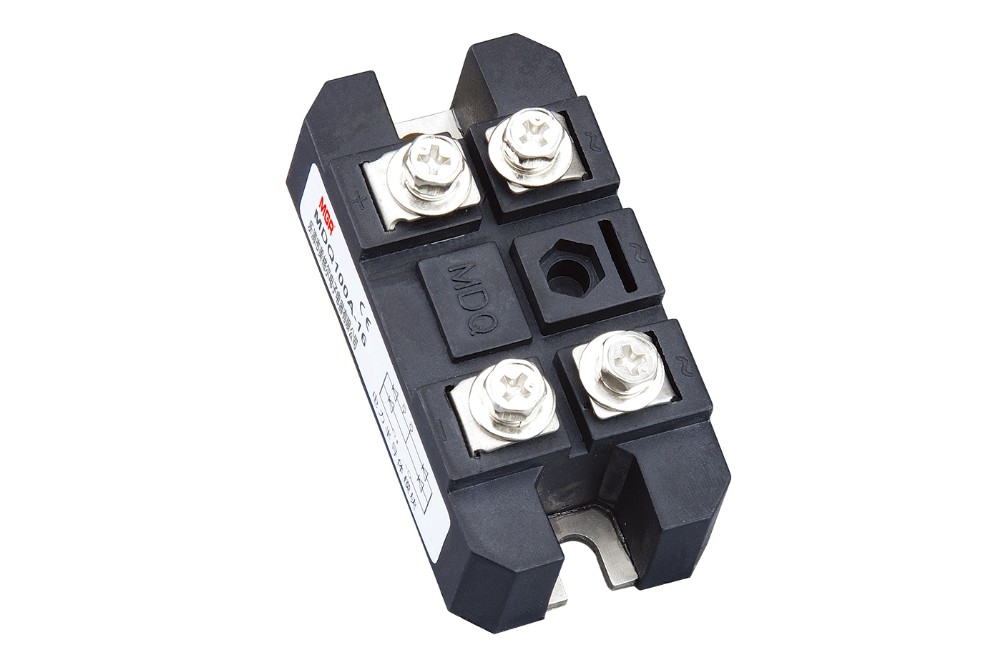

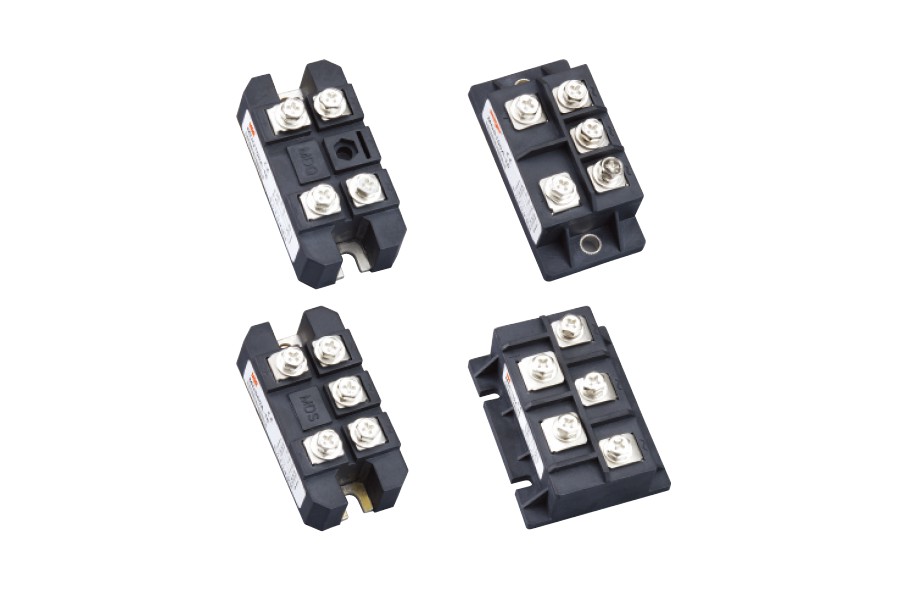

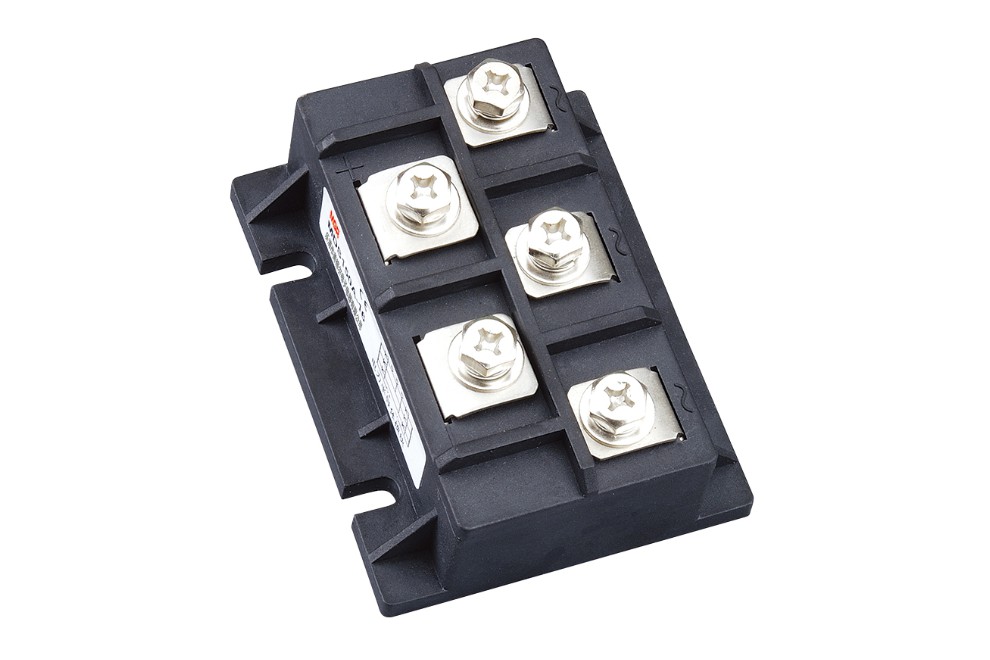

Product Image - MDQ, MDS series

Features
● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Low forward voltage drop
● Maximum operating junction temperature up to 150 ℃
● Compact dimensions and light weight

Product description
● VRSM=VRRM+200V
● In addition to VFM and VISO, the other parameters in the table are the test values under Tjm.

Typical application
● DC power supply of the instruments and equipment
● Input rectification power supply of the PWM inverter
● Excitation power supply of the DC motor
● Input rectification system of switching power supply
● Soft start capacitor charging system
● Electrical drive and auxiliary current
● Inverter welder
● DC power charging system

Module model and circuit diagram

Circuit diagram - mager MDQ, MDS series single phase / three phase bridge rectifier module


Product Specifications

SINGLE PHAS BRIDGE RECTIFIER MODULE
ModelDC Output CurrentAverage Forward Input CurrentCover TemperatureMaximum Repetitive Peak Reverse VoltageMaximum Repetitive Peak Reverse CurrentMaximum Peak On-state Voltage and CurrentMaximum Junction TemperatureIsolation VoltageOverall Dimensions
IdIF(AV)TC VRRMIRRMVTMITMTjmVisol
AAVmAVAV(AC)
MDQ 303010100600-200081.45301502500102A
MDQ 606020100600-200081.45601502500102A
MDQ 10010035100600-2000101.451001502500102A
MDQ 15015050100600-2000101.501501502500103A, 103A-1
MDQ 20020068100600-2000101.502001502500103A, 103A-1
MDQ 300300100100600-2000101.503001502500104A
MDQ 400400135100600-2000101.504001502500104A
MDQ 500500168100600-2000101.505001502500105A
MDQ 600600200100600-2000101.506001502500106A
THREE PHASE BRIDGE RECTIFIER MODULE
ModelDC Output CurrentAverage Forward Input CurrentCover TemperatureMaximum Repetitive Peak Reverse VoltageMaximum Repetitive Peak Reverse CurrentMaximum Peak On-state Voltage and CurrentMaximum Junction TemperatureIsolation VoltageOverall Dimensions
IdIF(AV)TC VRRMIRRMVTMITMTjmVisol
AAVmAVAV(AC)
MDS 303010100600-200081.45301502500102A
MDS 606020100600-200081.45601502500102A
MDS 10010035100600-2000101.451001502500102A
MDS 15015050100600-2000101.501501502500103A, 103A-1
MDS 20020068100600-2000101.502001502500103A, 103A-1
MDS 300300100100600-2000101.503001502500104A
MDS 400400135100600-2000101.504001502500104A
MDS 500500168100600-2000101.505001502500105A
MDS 600600200100600-2000101.506001502500106A

Note:
Single phase bridge rectifier module (MDQ); the domestic models corresponding to the imported models SKCH, DF, VHF etc., are subject to the circuit diagram.
Three phase bridge rectifier module (MDS); the domestic models corresponding to the imported models 6RI, RM, DF etc., are subject to the circuit diagram.


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
