Features

---

● Multi-function LED status

● Over temperature protection function

● Adjustable maximum output and minimum output

● Innovative structure with high efficiency and high quality

Parameters

---

● Rated current: 200A,250A,300A,400A

● Rated voltage: Three phase 380VAC (three-phase three-wire)

● Control signal: 4-20mA,0-5VDC,0-10VDC

● Control frequency: 50Hz/60Hz

● Output mode: phase output

● Protection function: Over temperature protection

● Operating environment: Ambient temperature below 45 °C, ambient humidity below 90% RH

Notice

---

● The input circuit of the main circuit adopts three-phase three-wire connection, no phase sequence requirement.

● SCR is a high current component, so please be sure to tighten the (R, S, T) and (U, V, W) terminals, otherwise it will heat up the terminals and then burn out the SCR.

● If the load adopts Y-connection, the neutral point cannot be connected to the neutral line, otherwise the SCR will lose control.

● When the heat sink temperature exceeds 75 °C, the over-temperature protection will be automatically turned on and stop the module from working. At this time, only the power status LED is lit.

Specifications

---

Model		MGR-SCR-LA-H
Rated current		200A 250A 300A 400A

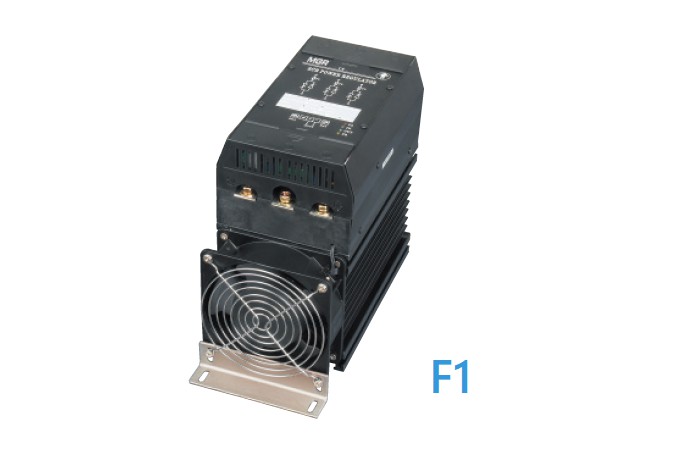

Overall Dimension	Drawing	F1
	W	125	180	180
	L	300	290	340
	H	230	230	230
Installation Dimension	Drawing	F2
	W	105	160	160
	L	268	200	250
Built-in fast fuse		yes	no

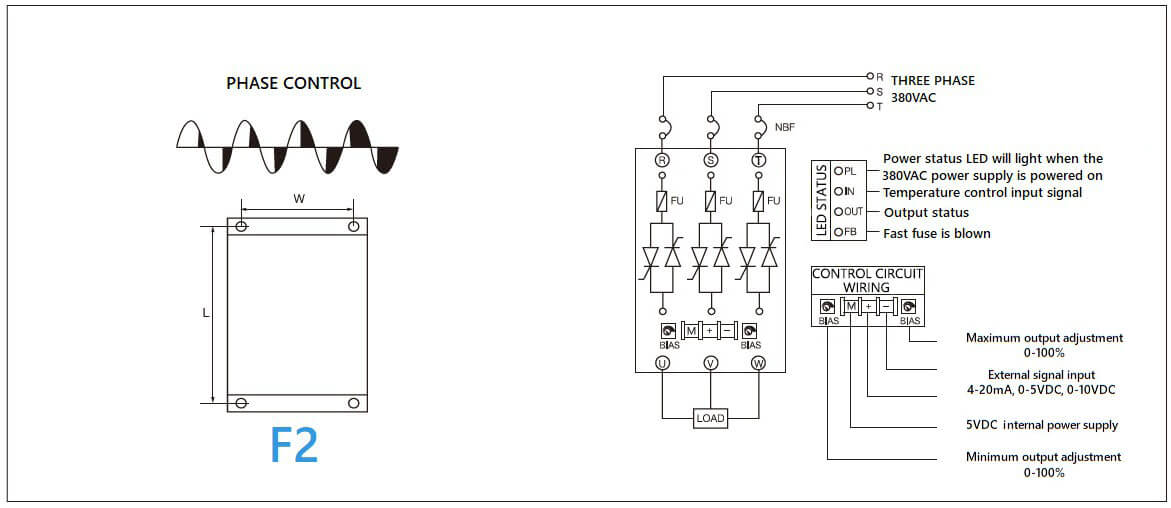

Installation dimensions and wiring diagram

---

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
