Product name：JGX-8F-S

Product overview:

TAG:  MAGER JGX (FS) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / PCB / HEAT SINK
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  220VAC / 380VAC
Load Current:  5A, 8A
Dimensions & Mounting:  43mm*30mm*20mm; PCB mount solid state relay with cast aluminum-zinc alloy housing; British standard PCB mounting dimensions with integrated heat sink, and DIP 4-pin package

Content us Return list Download PDF

Product introduction



JGX-8F-S

PCB DC-AC SOLID STATE RELAY (HEAT SINK TYPE)

Product Image - JGX 8F S

Type meaning

JGX - 8:[8A] - F:[DC-AC (DC input-AC output)] - S:[Heat sink]


Features
● Rated current: 8Amps
● Rated voltage: 220VAC/380VAC
● Control voltage: 3-32VDC
● Control current: ≤10mA
● DIP 4-pin package
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Cast aluminum-zinc alloy housing with significant heat dissipation
● British standard PCB mounting dimensions

Application

● Normally used in air conditioners, balers and other household appliances.

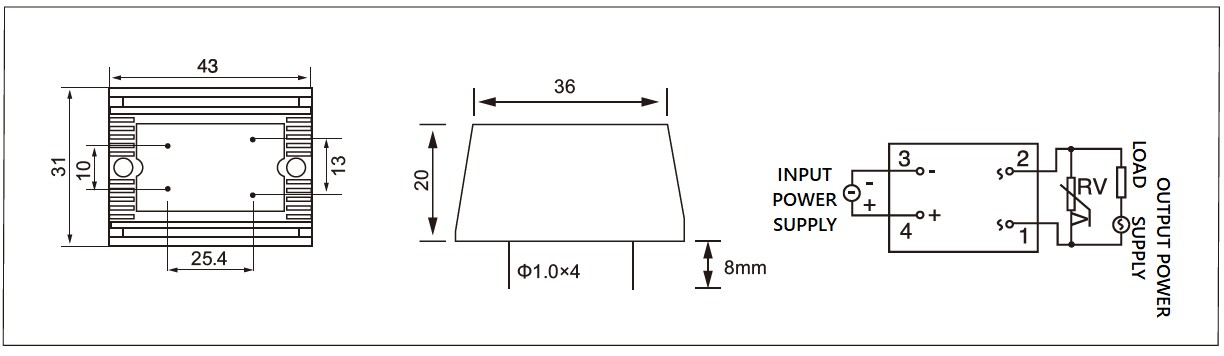

Dimension and circuit diagram - JGX (F) (S) series
