GJ-5FAL │HUIMULTD
  • GJ-5FAL │HUIMULTD
Product name：GJ-5FA-L

Product overview:

TAG:  MAGER GJ (FAL) SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / PCB
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  5~220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, 36VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current:  3A, 5A
Dimensions & Mounting:  38.5mm*12.5mm*22mm; PCB mount solid state relay with plastic cover; British standard PCB mounting dimensions, and SIP 4-pin package

Content us Return list Download PDF

Product introduction



GJ-5FA-L

DC SOLID STATE RELAY (PCB MOUNTING)

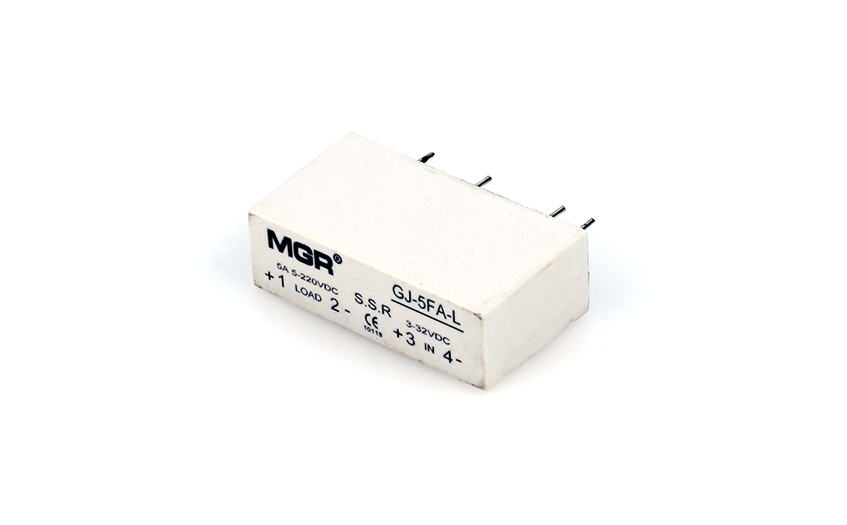

Product Image - GJ 5FA L

Type meaning

GJ - 5:[5A] - FA:[DC-DC (DC input-DC output)] - L:[SIP(single in line package)]


Features
● Rated current: 5Amps
● Rated voltage: 5-220VDC
● Control voltage: 3-32VDC
● Control current: ≤10mA
● SIP 4-pin package
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Low-impedance MOSFET as the output component minimize the total power consumption
● British standard PCB mounting dimensions

Application

● Normally used in air conditioners, balers and other household appliances.

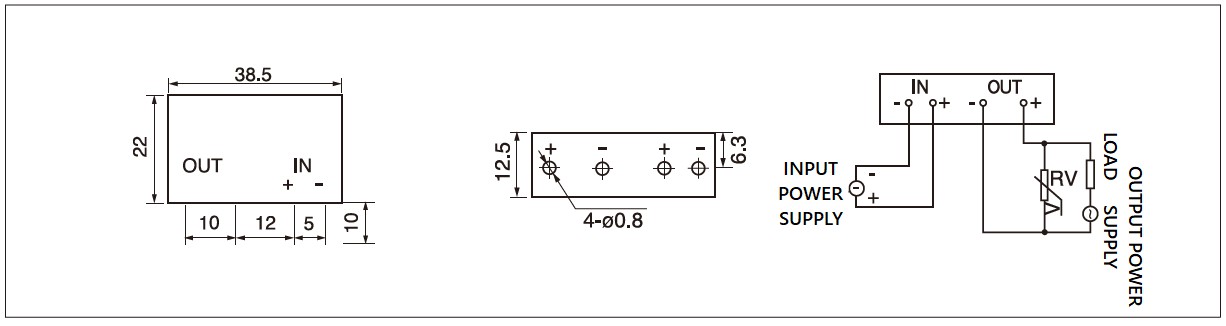

Dimension and circuit diagram - GJ (FA) (L) series


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
