Product name：GJ-5-L

Product overview:

TAG: MAGER GJ (L) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / PCB / SINGLE PHASE
Control Voltage: 3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 3A, 5A
Dimensions & Mounting: 38.5mm*22mm*12.5mm; PCB mount solid state relay with plastic cover; British standard PCB mounting dimensions, and SIP 4-pin package

Content us Return list Download PDF

Product introduction

GJ-5-L

PCB DC-AC SOLID STATE RELAY

Type meaning: GJ - 5:[5A] - L:[SIP(single in line package)]
Features: ● Rated current: 5Amps; ● Rated voltage: 220V/380VAC; ● Control voltage: 3-32VDC; ● Control current: ≤10mA; ● SIP 4-pin package; ● "Ultra low" input current; ● Low output off-state leakage current; ● Low output on-state voltage drop; ● Standard output RC snubber circuit; ● British standard PCB mounting dimensions
Application: ● Normally used in air conditioners, balers and other household appliances.

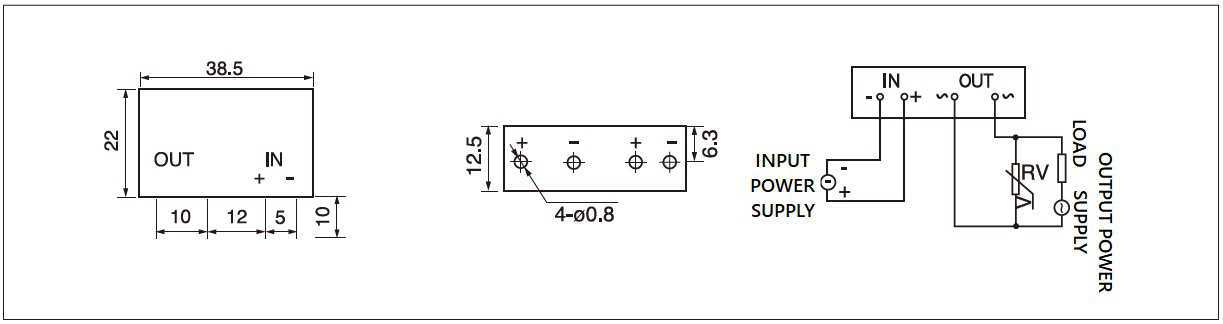

Dimension and circuit diagram - GJ (L) series

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Fatcor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
