Product name:MGR-DHK15A-200V

Product overview:

TAG:  MAGER MGR-DHK SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / FORWARD REVERSE
Control Voltage:  10~32VDC (such as 12VDC, 13.8VDC, 15VDC, 18VDC, 24VDC, 27VDC, 28VDC, 30VDC or customized control voltage)
Load Voltage:  200VDC
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  105mm*75mm*33mm; Panel mount solid state relay with metal base and screw terminals

Content us Return list Download PDF

Product introduction



Product Image - MGR DHK15A 200VMGR-DHK15A-200V

DC CONVERTER MODULE
(DC REVERSIBLE-MOTOR SOLID STATE RELAY /
DC BI-DIRECTIONAL MOTOR DIRECTION CONTROLLER)


Type meaning

MGR - D:[Control voltage 10-32VDC] - HK:[DC converter] - 15A:[15A] -200V:[Load voltage 200VDC]


Features
● Rated current: 10-100Amps
● Rated voltage: 200VDC
● Control voltage: 10-32VDC
● Low-impedance MOSFET as the output component minimize the total power consumption
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Two color (Red & Green) LED output status
● Built-in forward/reverse interlock protection function

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

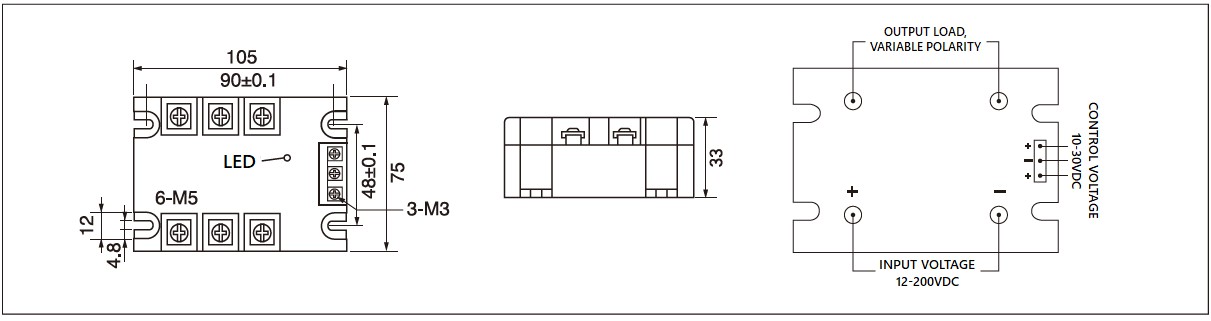

Dimension and circuit diagram - MGR DHK15A 200V


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Fator .
