location : Home > PRODUCTS > I/O MODULE >

Product name:IO MODULE

Product overview:

TAG:  MAGER IAC, IDC, OAC, ODC SERIES / SOLID STATE MODULE / IO MODULE
Input or Logic Voltage:  5VDC, 15VDC, 24VDC
Load Voltage:  E: 18~36VAC; F: 4~32VDC; H: 24~280VAC; R: 12~280VAC
Load Current:  1A, 3A, 5A
Dimensions & Mounting:  43.18mm*15.2mm*31.8mm; PCB mount solid state module with plastic cover, british standard PCB mounting dimensions, and DIP 4-pin package

Content us Return list Download PDF

Product introduction



Product Image - MGR AC input moduleI/O MODULE



We recommend that customers carefully review the technical data in our manuals and select the product model based on your own product design parameters to ensure that our products meet your specific application.


Features
● Industry standard package and pin
● Differentiate each module product series by color
● 4000Vrms optical isolation
● Excellent anti-interference ability
● Compatible with the same type product of other companies

Technical parameters (all I/O modules)
● Isolation voltage: 4000Vrms,60Hz
● Capacitance: 8PF typical (input to output)
● Operating temperature: -30℃~+80℃
● Storage temperature: -40℃~+85℃
● Approximate weight: 35g

Overall dimensions

Dimensions of mager IAC, IDC, OAC, ODC series I/O module


Our company provides the following products
IAC Series—— IAC-5, IAC-5A, IAC-5E, IAC-15, IAC-24
IDC Series—— IDC-5, IDC-24
OAC Series—— OAC-5, OAC-5A, OAC-5H, OAC-15, OAC-24, OAC-24A
ODC Series—— ODC-5, ODC-5A, ODC-15, ODC-15A, ODC-24

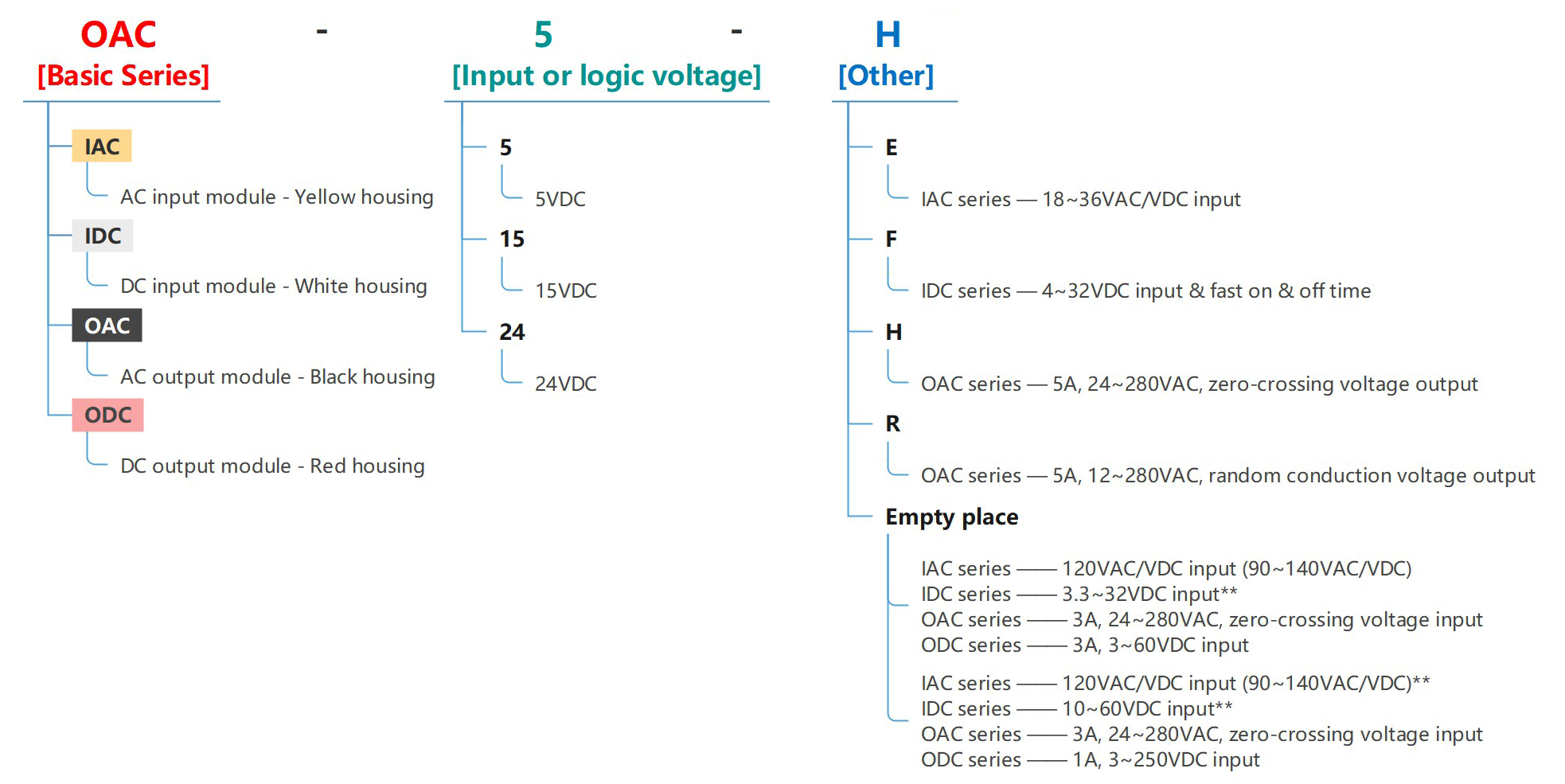

Type meaning

Type meaning

OAC:[Basic series] -5:[Input or logic voltage] -H:[Other]

● Basic series:
IAC=AC input module - Yellow housing
IDC=DC input module - White housing
OAC=AC output module - Black housing
ODC=DC output module - Red housing
● Input or logic voltage:
5=5VDC, 5=15VDC, 24=24VDC
● Other:
E=IAC series — 18~36VAC/VDC input
F=IDC series — 4~32VDC input & fast on & off time
H=OAC series — 5A, 24~280VAC, zero-crossing voltage output
R=OAC series — 5A, 12~280VAC, random conduction voltage output
Empty place=
  IAC series —— 120VAC/VDC input (90~140VAC/VDC)
  IDC series —— 3.3~32VDC input**
  OAC series —— 3A, 24~280VAC, zero-crossing voltage input
  ODC series —— 3A, 3~60VDC input
Empty place=
  IAC series —— 120VAC/VDC input (90~140VAC/VDC)**
  IDC series —— 10~60VDC input**
  OAC series —— 3A, 24~280VAC, zero-crossing voltage input
  ODC series —— 1A, 3~250VDC input

Module model and circuit diagram

Circuit diagram wiring diagram - IAC, IDC, OAC, ODC series I/O module



Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
