Product name：Solid State Heat Sink

Product overview:

The material of the mager MGR heat sink is usually aluminum heat sink. According to the dimension of the mager MGR solid state relay and the heat dissipation conditions, choose the appropriate heat sink. If you want to improve the heat sink performance, you can use the combination of high temperature heat sink and air cooled fan.
Click to enlarge the dimension diagram drawing.

Content us Return list Download PDF

Product introduction



SOLID STATE HEAT SINK

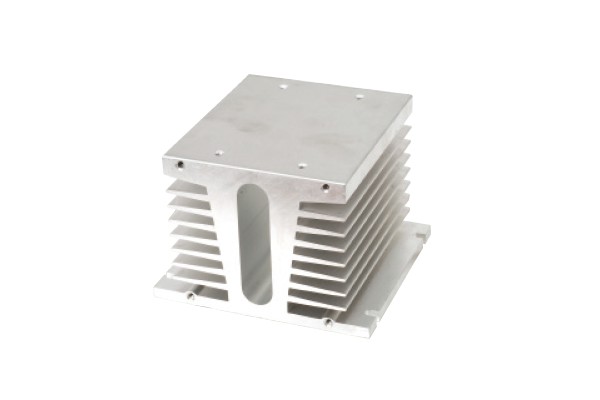

MG-F SERIES HEAT SINK
● Model: F-150
● Length×Width×Height: 120×105×93
● Application: 1.Suitable for three phase solid state relays, and the actual load current (sum of three phases) is not more than 120A 2.Suitable for rectangular solid state relays or long strip industrial solid state relays, and the actual load current is not more than 120A

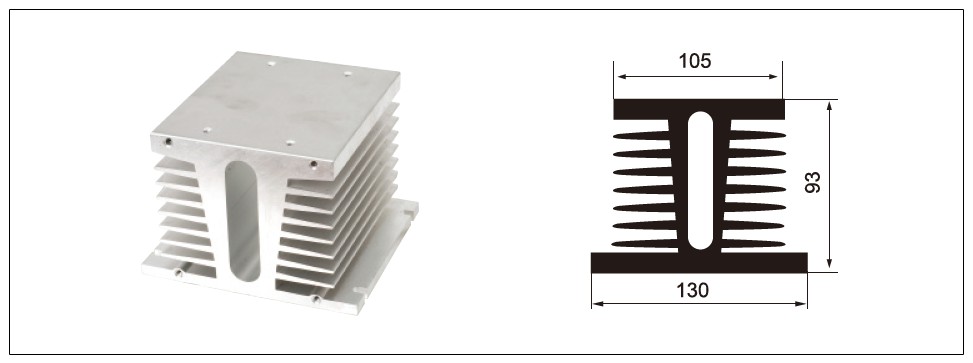

Diagram - heat sink MG-F

After installing the fan, the length of the heat sink needs to be increased by 32mm. The actual load current should be calculated after installing a cooling fan (thickness 32mm*length 92mm*width 92mm) at one end of the MG-F series heat sink.



MG-H SERIES HEAT SINK
● Model: H-150
● Length×Width×Height: 150×80×80
● Application: 1.Suitable for three phase solid state relays, and the actual load current (sum of three phases) is not more than 75A 2.Suitable for rectangular solid state relays or long strip industrial solid state relays, and the actual load current is not more than 35A

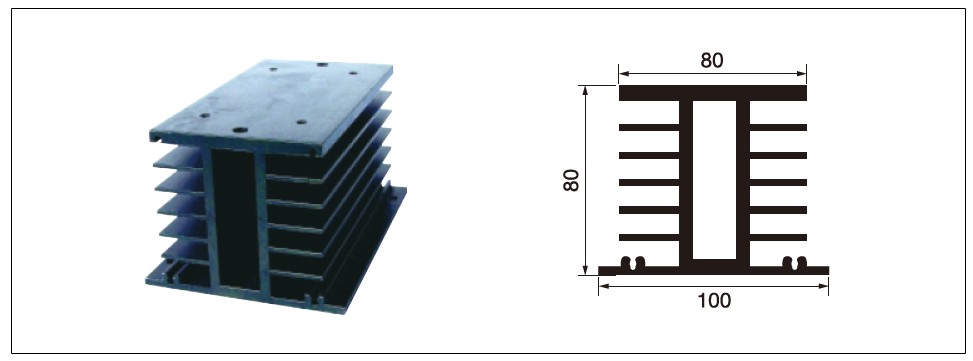

Diagram - heat sink MG-H

After installing the fan, the length of the heat sink needs to be increased by 32mm. The actual load current should be calculated after installing a cooling fan (thickness 32mm*length 92mm*width 92mm) at one end of the MG-H series heat sink.

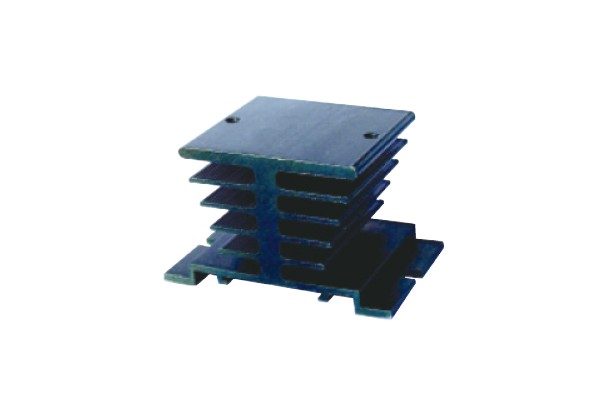

MG-I SERIES HEAT SINK
● Model: I-50
● Length×Width×Height: 50×60×50
● Application: Suitable for the rectangular single phase solid state relay with the actual load current no greater than 15A

Diagram - heat sink MG-I



MG-L SERIES HEAT SINK
● Model: L-150
● Length×Width×Height: 150×88×35
● Application: 1.Suitable for three phase solid state relays, and the actual load current (sum of three phases) is not more than 20A 2.Suitable for rectangular single phase solid state relays, and the actual load current is not more than 26A

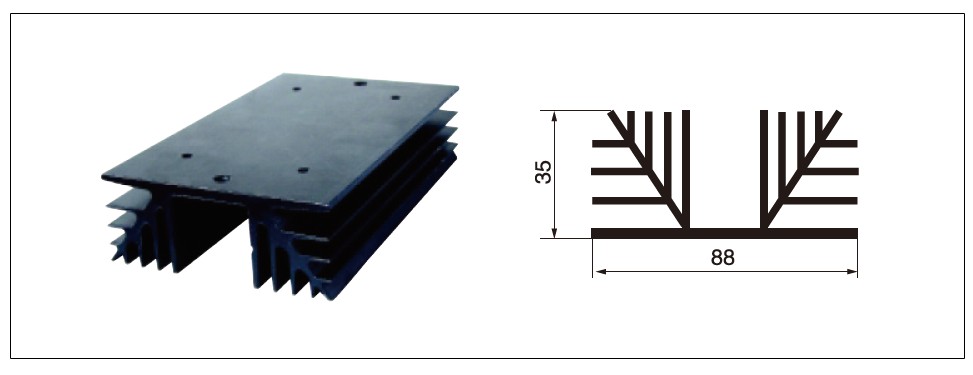

Diagram - heat sink MG-L



MG-T SERIES HEAT SINK
● Model: T-80
● Length×Width×Height: 80×70×80
● Application: Suitable for rectangular single phase solid state relays or long strip industrial solid state relays, and the actual load current is not greater than 26A
● Model: T-110
● Length×Width×Height: 110×70×80
● Application: Suitable for rectangular single phase solid state relays or long strip industrial solid state relays, and the actual load current is not greater than 26A

Diagram - heat sink MG-T



MG-W SERIES HEAT SINK
● Model: W-70
● Length×Width×Height: 70×125×50
● Application: Suitable for the rectangular single phase solid state relay with the actual load current no greater than 20A
● Model: W-100
● Length×Width×Height: 100×125×50
● Application: Suitable for the rectangular single phase solid state relay with the actual load current no greater than 26A

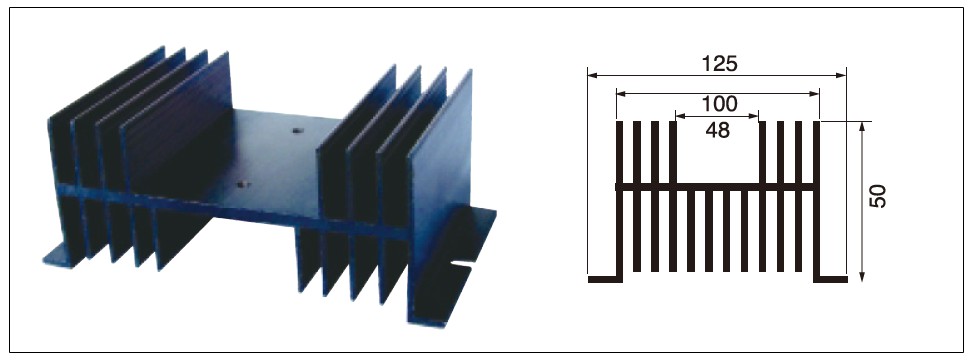

Diagram - heat sink MG-W

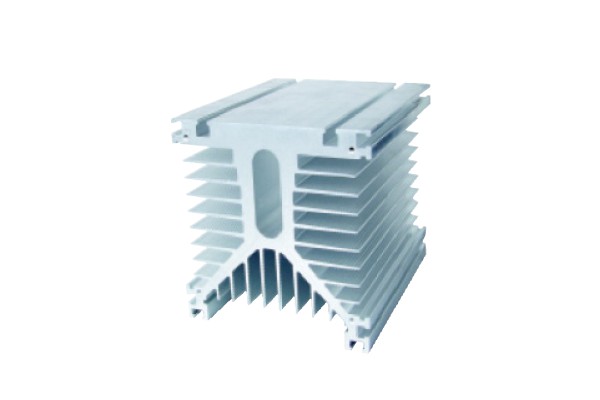

MG-Y SERIES HEAT SINK

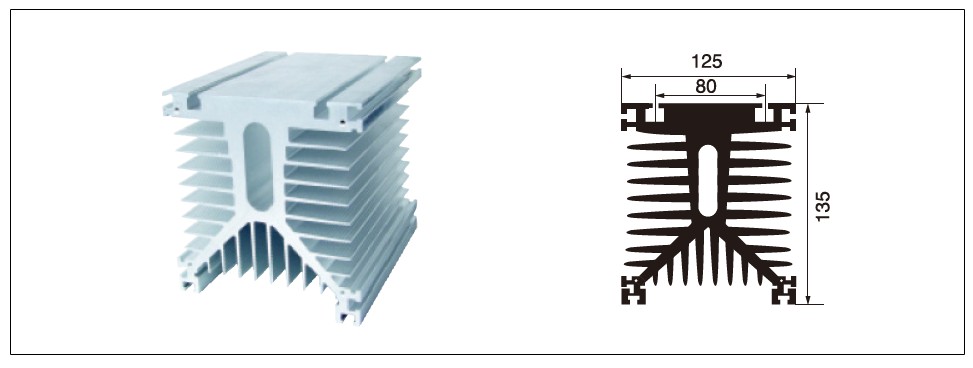

Diagram - heat sink MG-Y

After installing the fan, the length of the heat sink needs to be increased by 45mm. The actual load current should be calculated after installing a cooling fan (thickness 45mm*length 120mm*width 120mm) at one end of the MG-Y series heat sink.



Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
