Product name:Air Cooled Radiator for Module

Product overview:

The material of the mager MGR air cooler radiator is usually aluminum radiators. According to the dimension of the mager MGR solid state module and the heat dissipation conditions, choose the appropriate air radiator. If you want to improve the heat dissipation performance, you can use the combination of high temperature radiator and air cooled fan.
Click to enlarge the dimension diagram drawing.

Content us Return list Download PDF

Product introduction



AIR COOLED RADIATOR FOR MODULE



Type meaning

MG:[Company logo] - F:[Shape code of heat sink] - 300:[Length of heat sink]

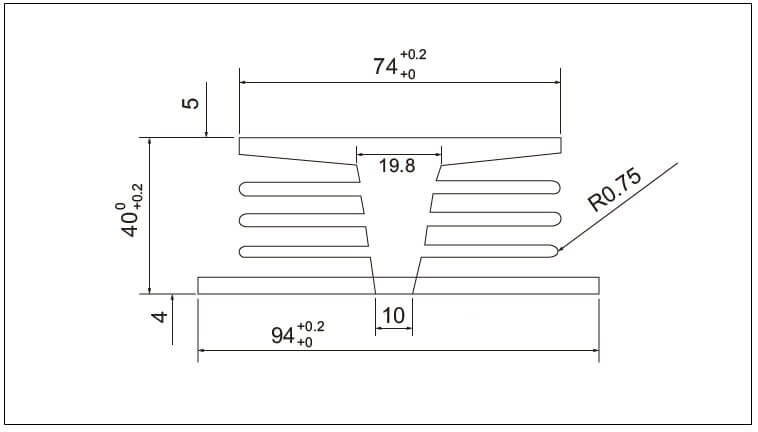

E SERIES HEAT SINK
● Lenth: 105/150mm
● Width: 74mm
● Height: 40mm

Diagram - Air Cooled Radiator Heat-Sink-E

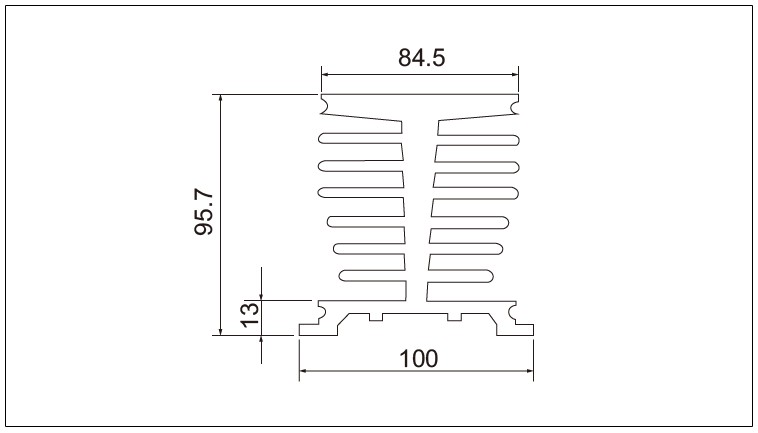

G SERIES HEAT SINK
● Lenth: 120mm
● Width: 84.5mm
● Height: 95.7mm

Diagram - Air Cooled Radiator Heat-Sink-G

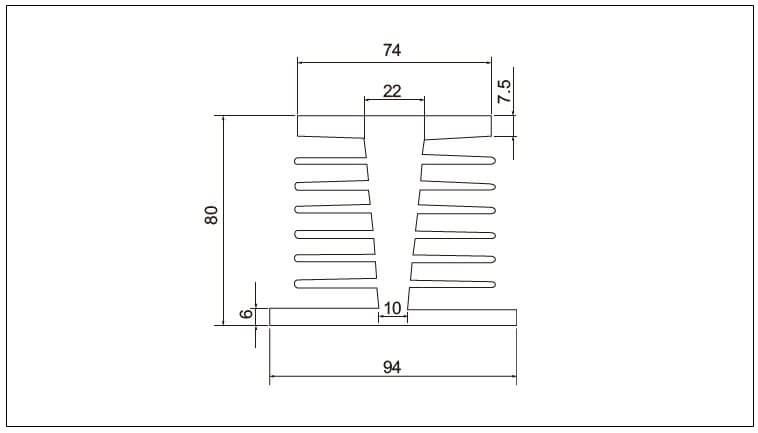

K SERIES HEAT SINK
● Lenth: 60mm
● Width: 74mm
● Height: 80mm

Diagram - Air Cooled Radiator Heat-Sink-K

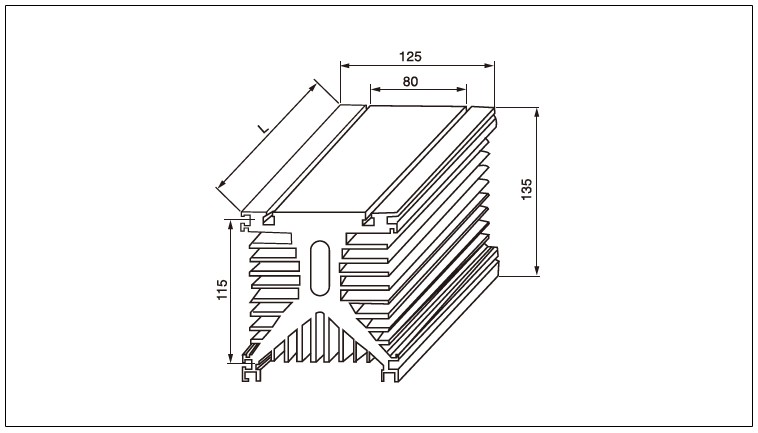

Y SERIES HEAT SINK
● Lenth: 150/200mm
● Width: 125mm
● Height: 135mm

Diagram - Air Cooled Radiator Heat-Sink-Y

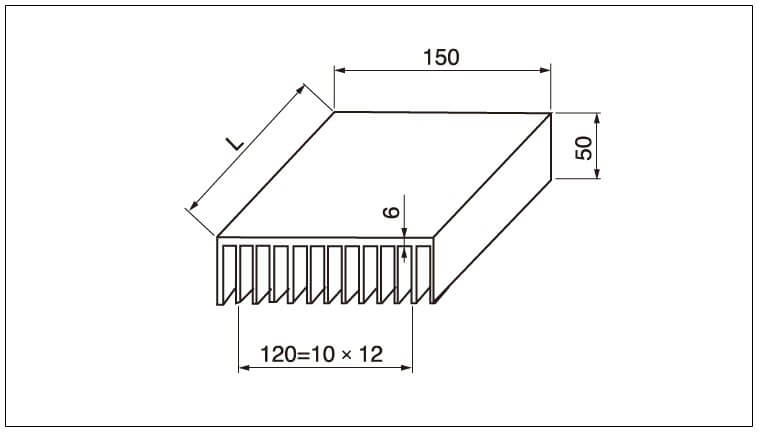

Z SERIES HEAT SINK
● Lenth: 150mm
● Width: 150mm
● Height: 50mm

Diagram - Air Cooled Radiator Heat-Sink-Z



Note: Under the premise of fixed width (W) and height (H) dimension, the length (L) dimension of the above heat sink can be customized according to customer’s requirements.


Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
