MGR-3A12025Z │HUIMULTD
  • MGR-3A12025Z │HUIMULTD
Product name：MGR-3-A12025Z

Product overview:

TAG:  MAGER MGR-3A SERIES / SOLID STATE RELAY / AC TO AC (AC INPUT AC OUPUT) / THREE PHASE / ZERO CROSSING / HIGH LOAD VOLTAGE
Control Voltage:  85~265VAC (such as 85VAC, 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC, 265VAC or customized control voltage)
Control Current:  Ultra low input current, ≤20mA
Load Voltage:  Three phase, 24~1200VAC (such as 24VAC, 36VAC, 48VAC, 110VAC/120VAC, 220VAC/230VAC, 415VAC, 440VAC, 460VAC, 1200VAC or customized voltage)
Load Current:  10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 100A, 120A
Dimensions & Mounting:  105mm*74mm*33mm; Panel mount solid state relay with transparent cover,metal base and screw terminals

Content us Return list Download PDF

Product introduction



MGR 3A12025Z, MGR 3A series three phase AC to AC solid state relay, AC input, AC output, 24VAC, 1200VAC, transparent cover, panel mounting with metal base and screw terminalsMGR-3-A12025Z

THREE PHASE AC-AC SOLID STATE RELAY (HIGH VOLTAGE TYPE)


Type meaning

MGR - 3: [Three phase] - A: [Control voltage 85-265VAC]  - 120 :[Load voltage 24-1200VAC] -25: [25A] -Z: [Zero-crossing type]


Features
● Rated current: 25Amps
● Rated voltage: 24-1200VAC
● Control current: ≤20mA
● TRIAC as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Transparent cover for extra protection

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

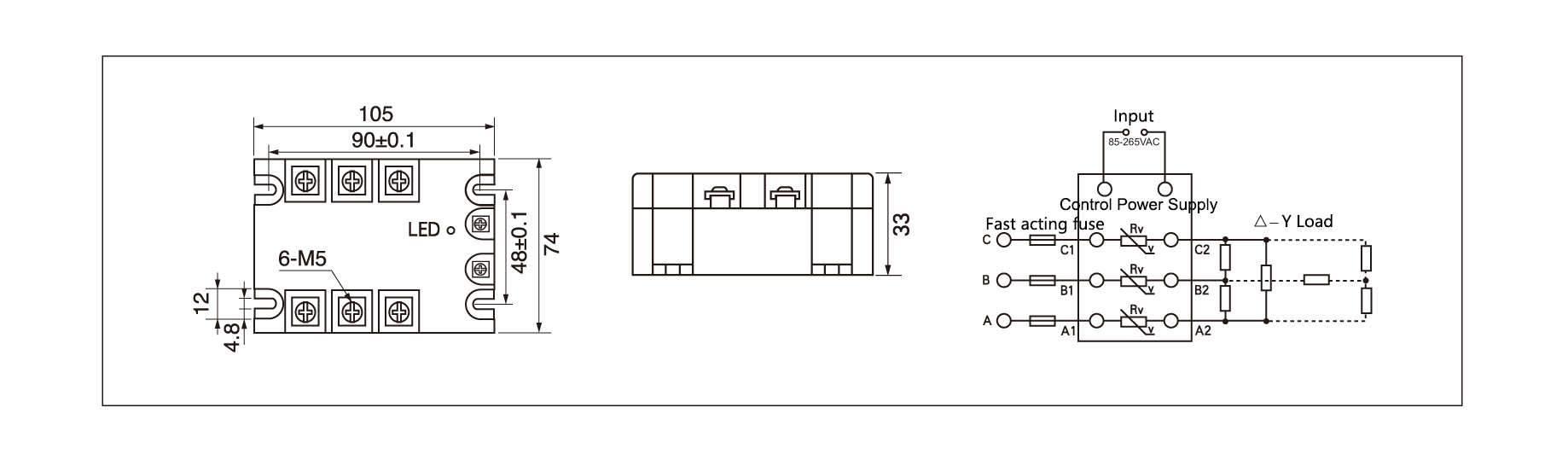

Dimension and circuit diagram - MGR 3 A120 series

Note: Specific voltage can be customized.

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
