MGR-1DD48D40 │HUIMULTD
  • MGR-1DD48D40 │HUIMULTD
Product name：MGR-1DD48D-40

Product overview:

TAG:  MAGER MGR-1DD SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / ONE CHANNEL
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Low input current, ≤40mA
Load Voltage:  One channel, 5~48VDC (such as 5VDC, 6VDC, 8VDC, 9VDC, 12VDC, 18VDC, 24VDC, 36VDC, 42VDC, 48VDC or customized voltage)
Load Current:  10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 150A, 180A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals

Content us Return list Download PDF

Product introduction



Product Image - MGR 1DD48D40MGR-1DD48D-40

DC-DC SOLID STATE RELAY


Type meaning

MGR - 1:[One channel] - DD: [DC-DC (DC input-DC output), Control voltage 3-32VDC] - 48 : [Load voltage 48VDC] - 40 : [40A]


Features
● Rated current: 40Amps
● Rated voltage: 48VDC
● Control voltage: 3-32VDC
● Control current: ≤40mA
● DC SOLID STATE RELAY  are easy to connect in parallel, suitable for high current applications
● Low output off-state leakage current
● Low-impedance MOSFET as the output component minimize the total power consumption
● Suitable for resistive load and inductive load (the inductive load, such as motor and EMR /electromagnetic coil, must be equipped with the suppressor diode)
● Display output status via LED
● Standard output RC snubber circuit
● Transparent cover for extra protection

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

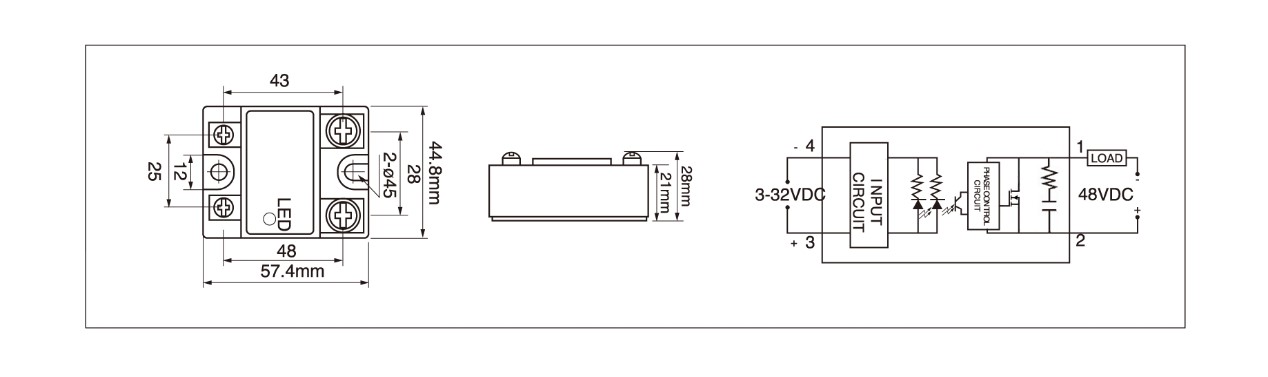

Dimension and circuit diagram - MGR 1DD48 series

Note: Specific voltage can be customized.

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help , or Contact us to get more support.
