TAG: MAGER MGR-1A SERIES / SOLID STATE RELAY / AC TO AC (AC INPUT AC OUPUT) / SINGLE PHASE / RANDOM CROSS / ZERO CROSSING
Control Voltage: 85~265VAC (such as 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current: 10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 120A, 150A
Dimensions & Mounting: 57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover,metal base and screw terminals

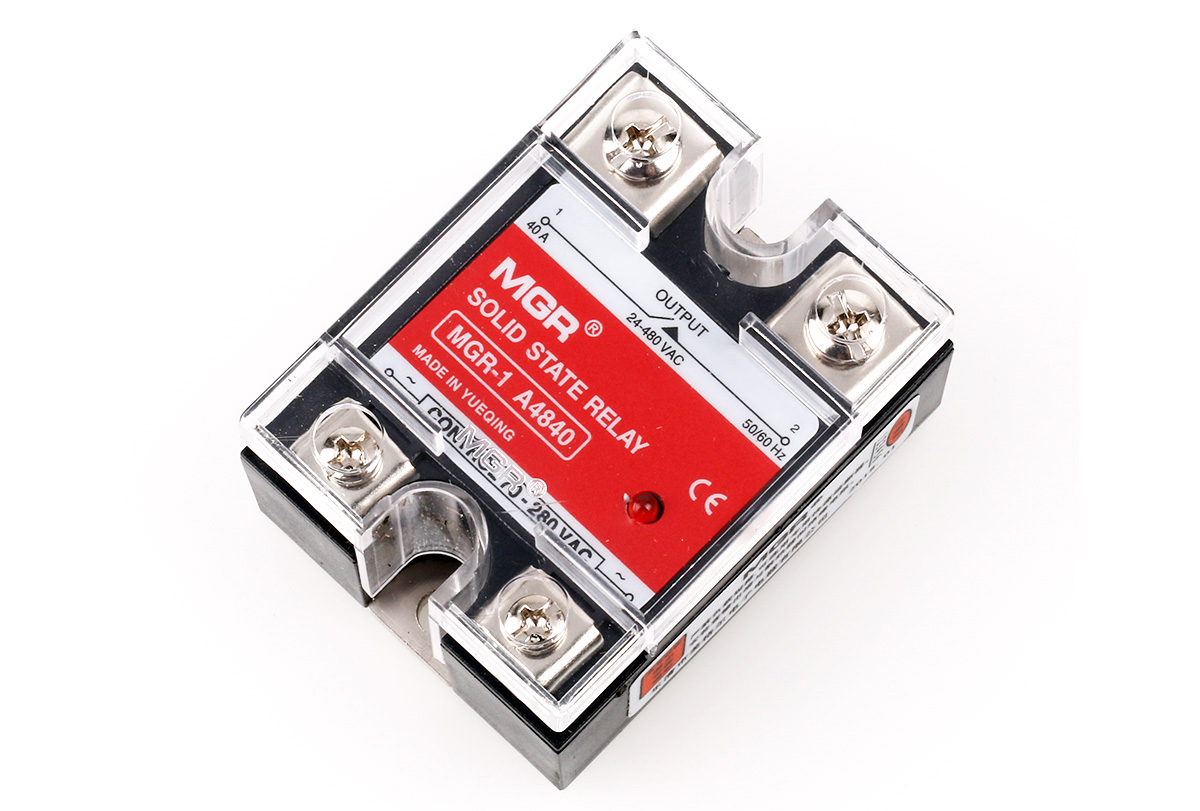

SINGLE PHASE AC-AC SOLID STATE RELAY
MGR - 1:[Single phase] - A:[Control voltage 85-265VAC] - 48:[Load voltage 24-480VAC] -40:[40A]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
